What is a 3D Hydraulic Hinge? A Complete Guide for Furniture Manufacturers

Introduction

If you're sourcing furniture hardware for your manufacturing business, you've likely encountered the term "3D hydraulic hinge¹." But what exactly is it, and why should you choose it for your furniture projects?

In this comprehensive guide, we'll explain everything you need to know about 3D hydraulic hinge¹s— from how they work to why they're becoming the preferred choice for modern furniture manufacturers worldwide.

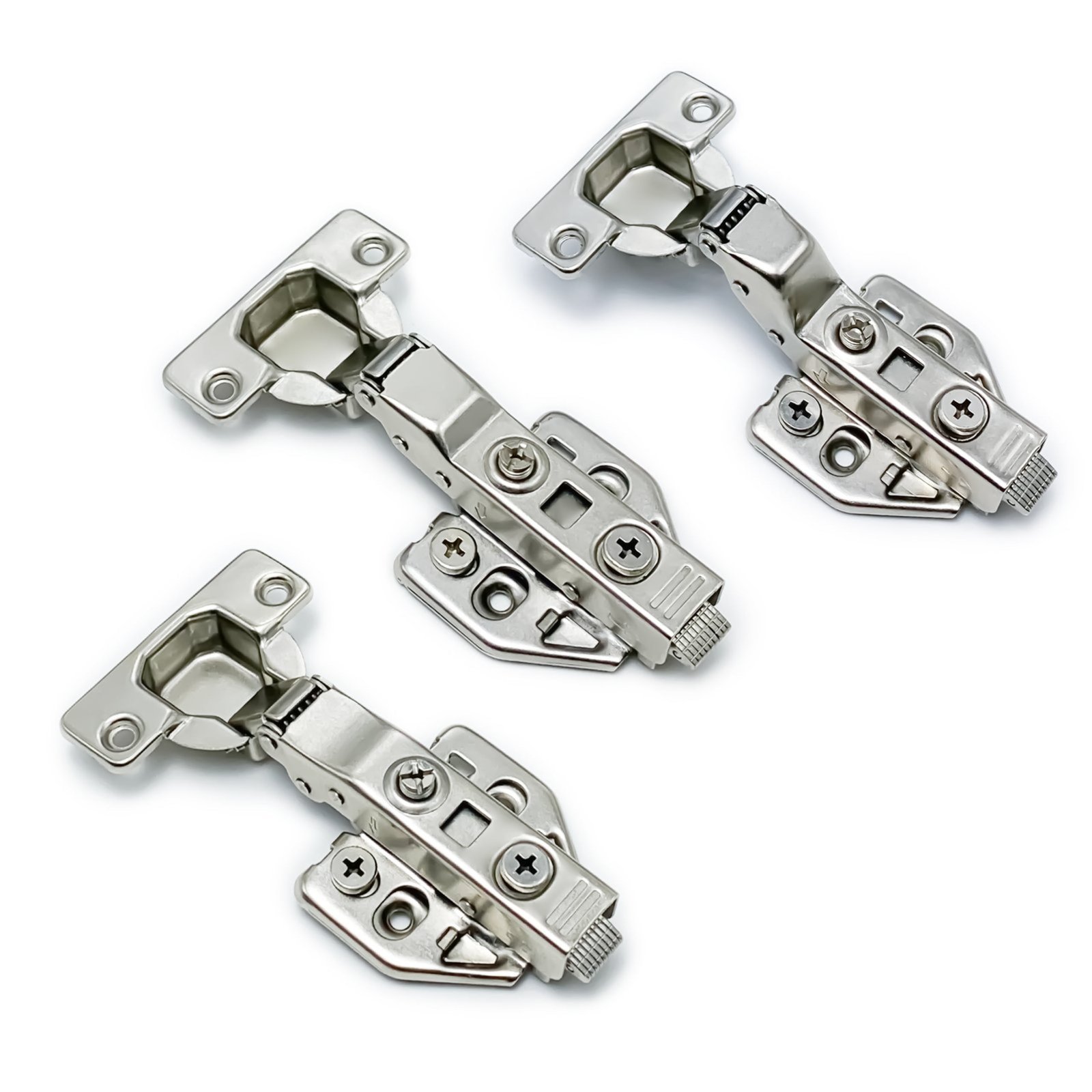

What is a 3D Hydraulic Hinge?

A 3D hydraulic hinge¹ (also known as a soft-close hinge² or damper hinge) is a specialized cabinet hinge with a built-in hydraulic cylinder³ that controls the closing speed of doors.

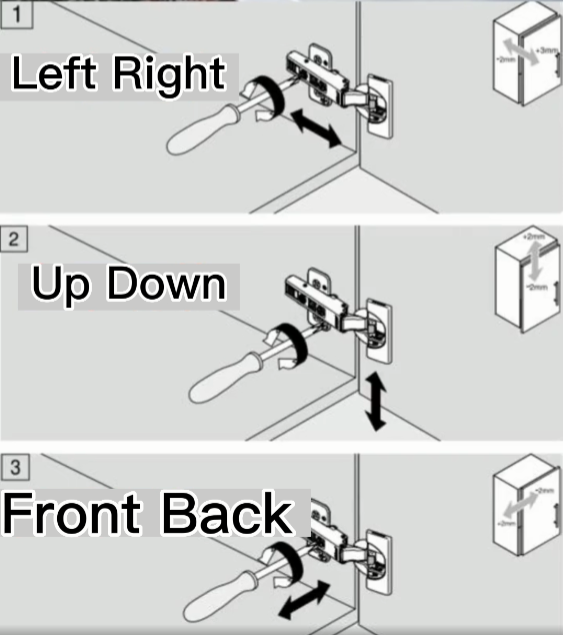

The "3D" refers to three-way adjustment capability:

• Up/Down adjustment – Fine-tune door height position
• Left/Right adjustment – Align door gap spacing
• In/Out adjustment – Control door depth positioning

How Does the Hydraulic Work?

Inside the hinge arm, there's a sealed hydraulic cylinder³ with oil. When you close the cabinet door, the piston compresses the oil, creating resistance that slows and gently pulls the door shut automatically—no slamming, no noise.

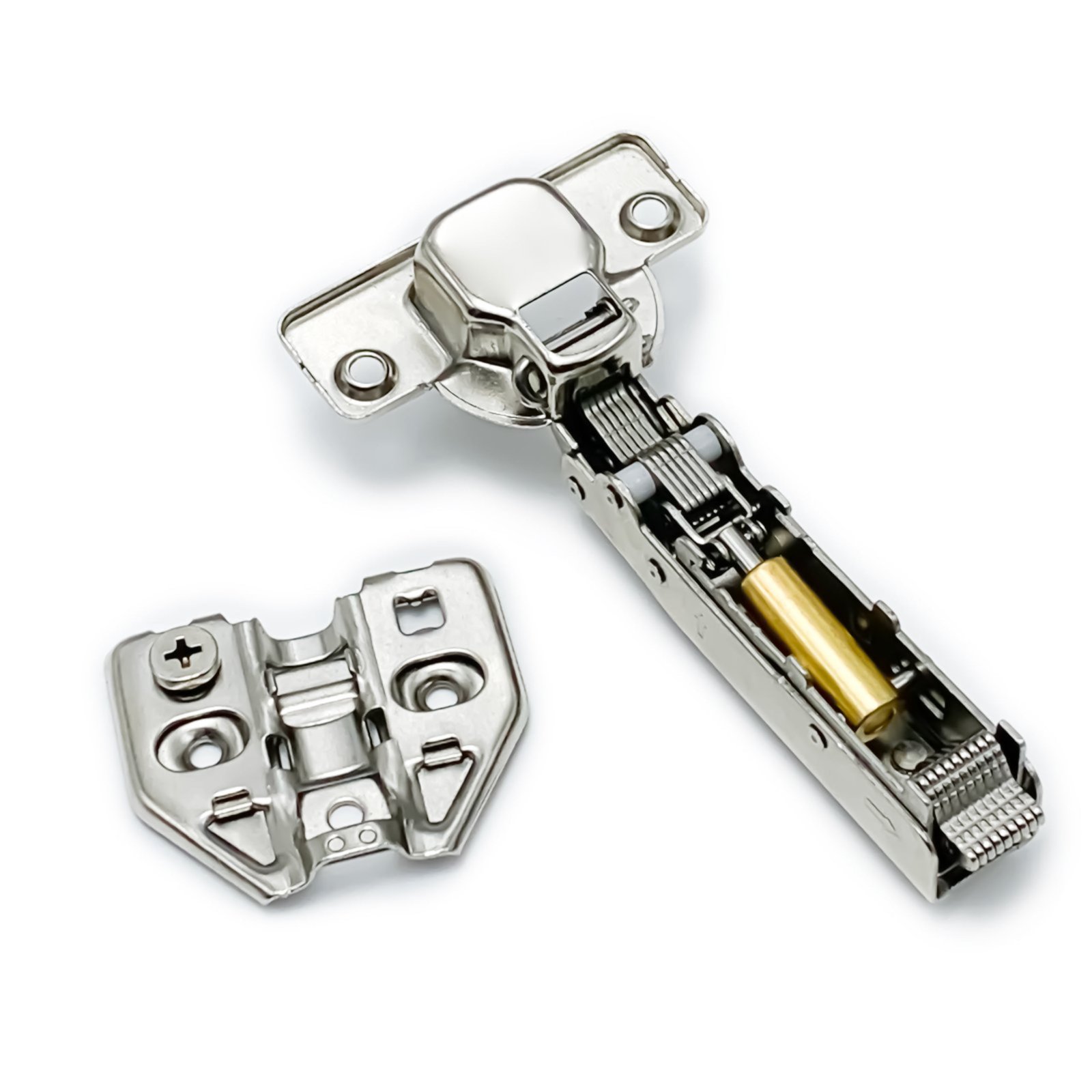

Key components:

1. Hydraulic damper unit
2. Spring mechanism
3. 3D adjustment screws⁴
4. Mounting plates

Benefits for Furniture Manufacturers

1. Premium User Experience⁵

• Silent, smooth closing
• No door slamming damage
• Luxury feel for end customers

2. Durability

• Reduces wear and tear on cabinets
• Extends furniture lifespan
• Minimum 50,000+ cycle life (quality hinges)

3. Easy Installation

• 3D adjustment simplifies alignment
• Universal mounting plate systems
• Compatible with most cabinet designs

4. Market Demand

• Consumers increasingly expect soft-close features
• Premium positioning = higher margins
• Required specification in many markets

Technical Specifications to Consider

When sourcing hydraulic hinges, check these specifications:

Types of 3D Hydraulic Hinges

1. Clip-on Hydraulic Hinge⁷

• Most common type
• Tool-free installation
• Removable without unscrewing

2. Screw-mount Hydraulic Hinge

• More secure attachment
• For heavy-duty applications
• Permanent installation

3. Specialty Hydraulic Hinge

• 175° opening angle
• For corner cabinets
• Glass door applications

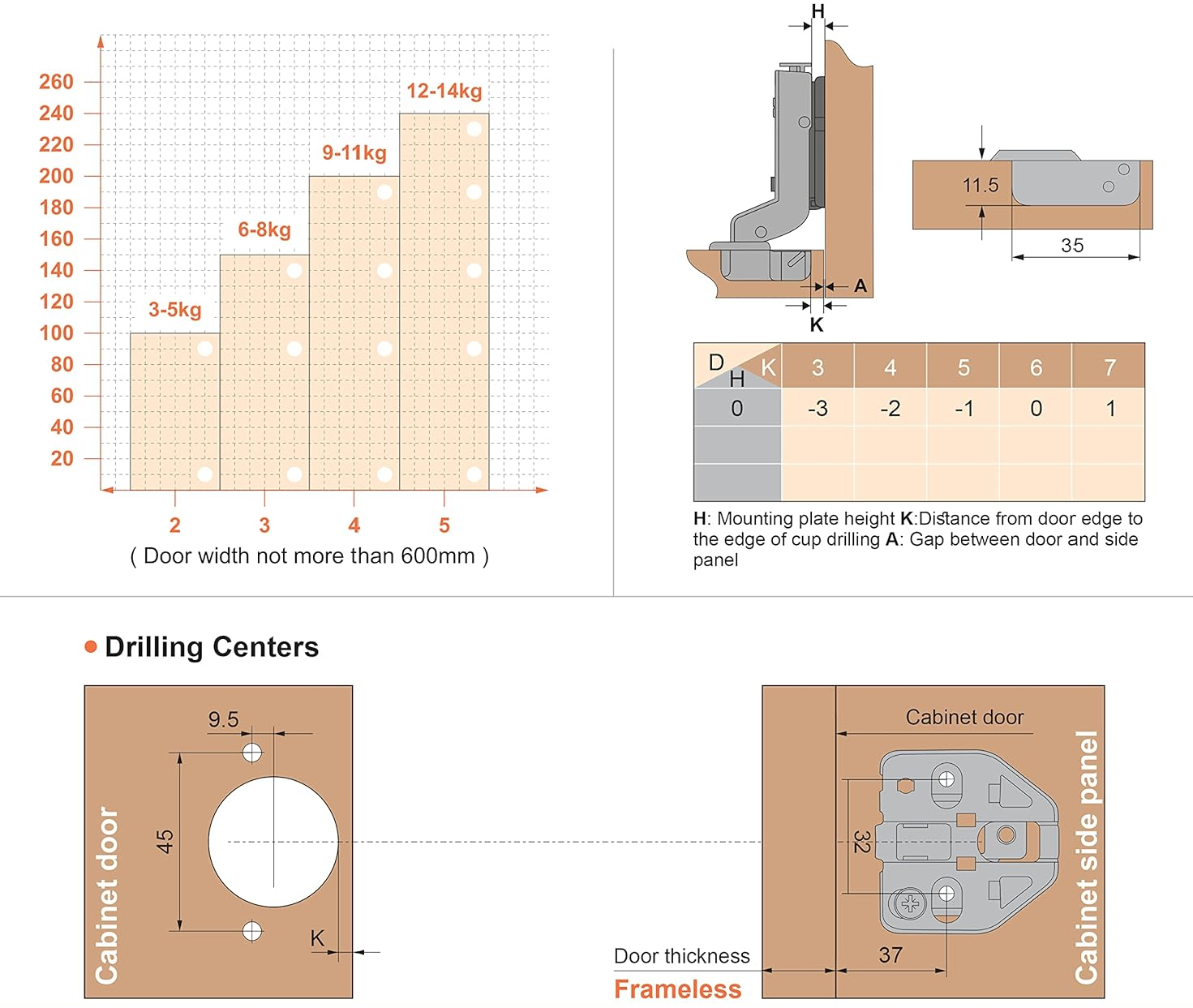

Installation Tips

1. Measure correctly – Check door thickness (typically 14-22mm)
2. Use proper mounting plates – Full overlay, half overlay, or inset
3. Adjust systematically – Height first, then side, then depth
4. Test multiple times – Ensure smooth operation before mass production

Why Source from China?

China remains the world's leading manufacturer of furniture hardware, offering:

• Competitive pricing – 30-50% lower than European suppliers
• Large production capacity – Ability to scale with your orders
• Quality certifications – ISO 9001, SGS testing available
• Customization – OEM/ODM services available

Furnihard is a professional Chinese manufacturer with 12+ years of experience producing 3D hydraulic hinge¹s. Our factory covers 10,000+ square meters with 20+ automated production lines, outputting 300,000+ pieces daily.

Conclusion

3D hydraulic hinge¹s are an essential component for modern furniture manufacturing. They enhance customer satisfaction, reduce warranty claims, and help you command premium pricing.

Ready to source quality hydraulic hinges? Contact us for competitive pricing and free samples.
