Iron 45mm width push open drawer slide

The 45mm width series is the most strategic choice for high-volume furniture production. Designed to balance structural integrity with material economy, this model is the “Volume Leader” for hardware wholesalers and large-scale furniture factories worldwide. If your project demands reliable quality without breaking the budget, our 45mm iron soft closing slide is the definitive solution.

—

## **Why This Model Dominates the Global Market?**

Engineered for Cost-Efficiency
The 45mm wide rebound slide rail is the ultimate solution for handle-less modern furniture. Utilizing an integrated rebound trigger mechanism, it achieves a smart operating experience of “press to open, touch to close.” Specifically designed for minimalist style, modern design, and smart home scenarios, it eliminates all visible hardware, creating a pure and aesthetically pleasing space.

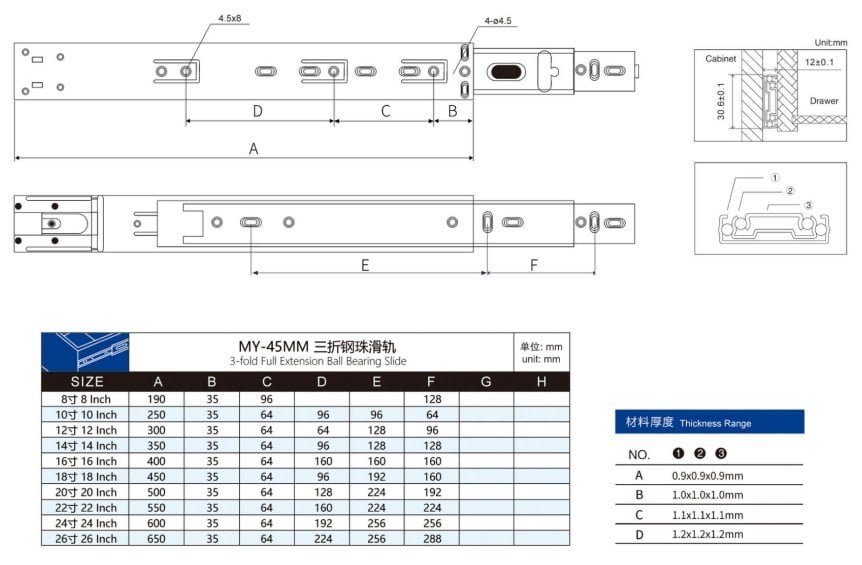

1. Physical Parameters

Parameter Category Specific Indicators
Main Material Cold-rolled steel plate (reinforced)
Surface Treatment Galvanized bottom + black/white electrostatic powder coating (optional)
Slide Width 45mm (wide-body stable structure)

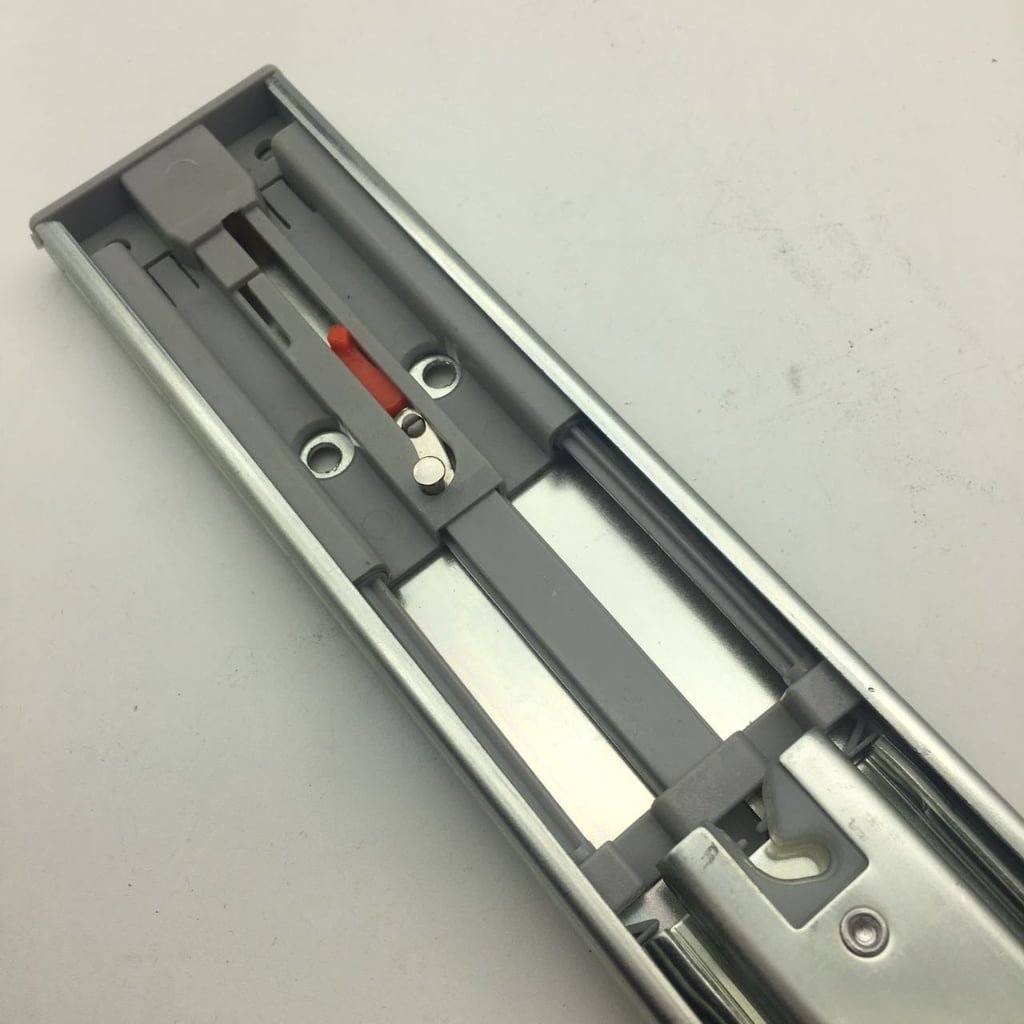

2. Core Rebound Mechanism

Trigger Principle: Patented lever-type rebound device with built-in high-precision spring system

Work Process:

Pressing Stage: Lightly press the drawer panel (pressure 15-25N)

Trigger Stage: The rebound device unlocks, and the spring releases energy

Opening Stage: The drawer automatically pops out 30-40mm

Buffering Stage: The final 50mm of hydraulic buffering occurs when closing

Sensitivity Adjustment: 3 adjustable levels (suitable for drawers of different weights)

Light Load Level: 15-18N (empty drawer or light load)

Standard Level: 20-22N (regular use)

Heavy Load Level: 24-25N (fully loaded drawer)

3. Ultimate Minimalist Aesthetics

Completely Hidden: No handles, grooves, or buttons on the front of the drawer.

Flat and Seamless: Seamlessly integrates with various panel materials (wood, glass, acrylic, metal).

Seamless Design: Drawer gaps can be reduced to 1mm for an “invisible” effect.

4. Intelligent Touch Control Experience

Intuitive Operation: Press lightly to open, press again to close (or push lightly to close).

Force Adaptation: Automatically adapts to different loads with consistent trigger force.

Accidental Touch Protection: Requires pressing at a specific location to prevent accidental opening.

5. Stable and Reliable Performance

Wide-Body Structure: 45mm width provides excellent torsional resistance, preventing drawer tilting.

Double Safety: Mechanical lock + anti-accidental opening device ensures safety.

Overload Protection: Automatically increases rebound force when overloaded, ensuring reliable opening.

6. Silent Buffer Closing
Silent Opening: Almost no noise during the rebound process

Gentle Closing: Hydraulic buffer eliminates impact noise

Library-Level Quiet Operation: Overall noise level <30dB 7. Easy Installation and Maintenance Handle-Free Design: Saves on handle procurement and installation costs Adaptive Adjustment: Automatically adapts to panel thicknesses of 18-25mm Modular Replacement: The rebound mechanism can be replaced individually, resulting in low maintenance costs.
