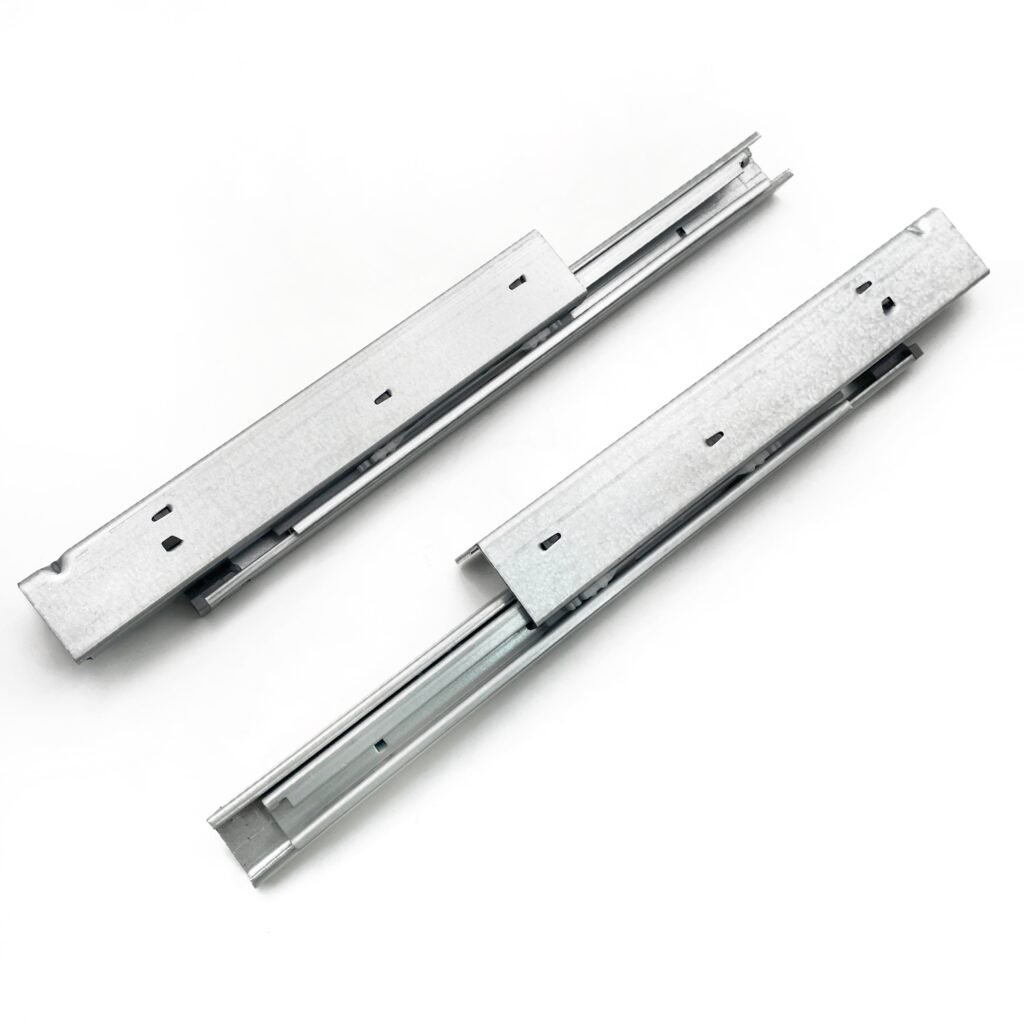

Bulk 3D Synchronized Full Extension Undermount Drawer Slides
Product Overview

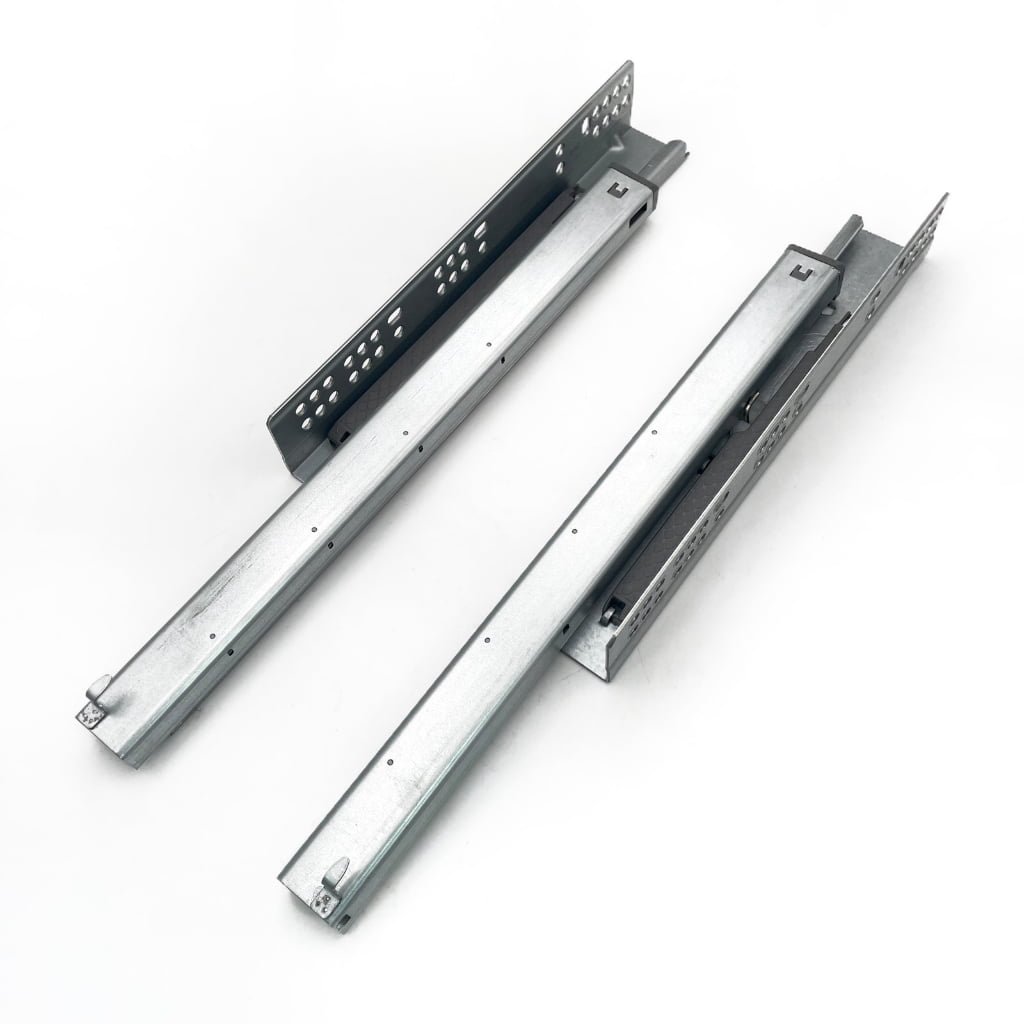

Our MINVEE 3D Synchronized Undermount Slide series combines concealed aesthetics with high-precision mechanical motion. Engineered for high-end residential cabinetry and modular millwork, these bottom-mounted runners remain completely hidden beneath the drawer box to maximize side-clearance and interior storage space. Featuring a synchronized rack-and-gear linkage, built-in hydraulic dampening, and 3D tool-free adjustment handles, this full-extension slide delivers whisper-quiet opening, zero side-sway, and effortless drawer detachment.
Key Features

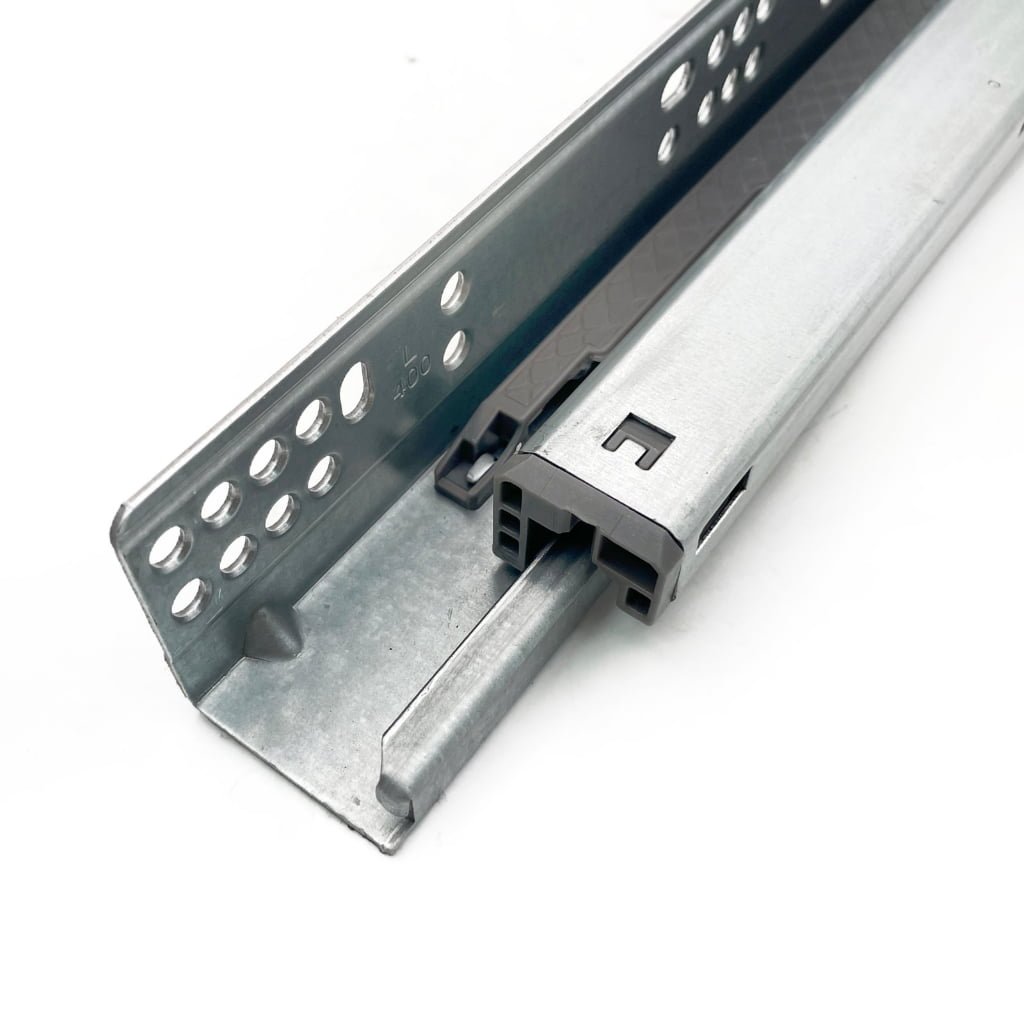

Synchronized Smooth & Quiet Motion
Integrated rack-and-gear synchronization ensures both slide members deploy and retract simultaneously. This eliminates uneven drawer racking, lateral play, and binding—even on wide drawer boxes—while the soft-close hydraulic cylinder cushions the final closure into a silent glide.
3D Tool-Free Precise Adjustment

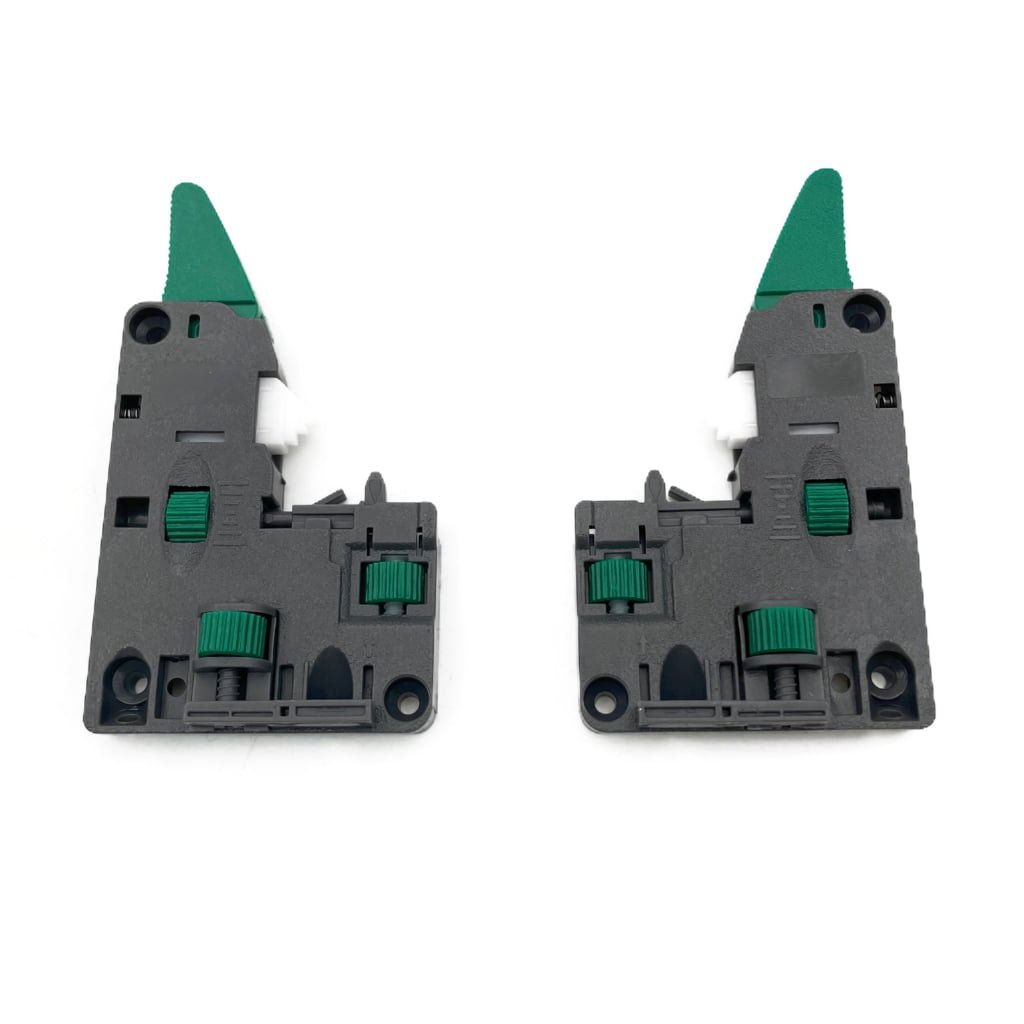

Equipped with heavy-duty 3D locking handles featuring ergonomic thumb-wheels. Installation crews can micro-adjust the drawer panel Up/Down (±3mm), Left/Right (±1.5mm), and Depth (0~5mm) directly on-site without removing screws or using special tools.

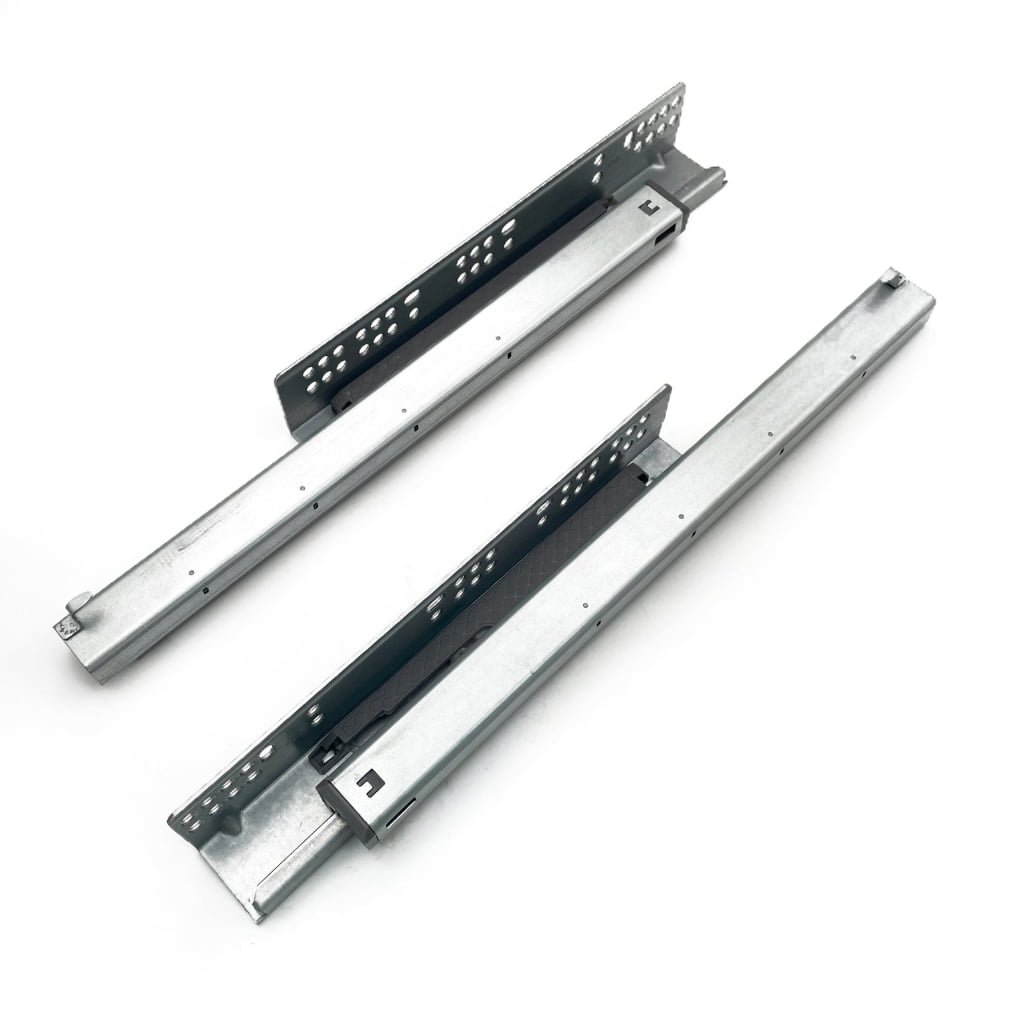

Full Extension (250mm – 550mm Range)
The 3-section telescopic mechanism extends 100% past the cabinet frame edge, providing complete visibility and full top-down access to the rear of the drawer. Available in standard commercial lengths from 10″ (250mm) up to 22″ (550mm).
Heavy-Duty 30kg Dynamic Load Rating
Built with high-tensile galvanized steel rails to handle a strict 30kg dynamic working payload. Holds heavy kitchen cookware, pantry storage, and bedroom joinery flat and level without rail deflection or bottoming out.
Tested Durability & Quick Release
Certified for over 50,000 open/close cycles under full rated weight for long-term operational lifespan. The one-touch release lever allows workers or homeowners to snap the drawer off the tracks instantly for rapid cleaning or packaging.
Technical Specifications & Installation Parameters
| Technical Parameter | Specification |
| Product Type | Concealed Synchronized Undermount Slide |
| Extension Type | Triple Full Extension (3-Section) |
| Dynamic Load Capacity | 30kg (66 lbs) |
| Available Nominal Lengths (NL) | 250mm (10″) to 550mm (22″) |
| 3D Adjustment Range | Height: 0~+3mm | Depth: 0~+5mm | Side: +1.5mm |
| Drawer Side Panel Thickness | Up to 1 Max 16mm / Max 19mm Compatible |
| Cabinet/Drawer Gap Standards | Cabinet Depth = NL + 3mm | Drawer Width (SKW) = LW – 49mm |
| Closing Mechanism | Integrated Soft-Close Hydraulic Buffer |
| Lifespan Rating | 50,000 Cycles Verified |
Application Suitability & Sourcing Logic
| Cabinet Category / Application | Suitability Rating | Sourcing Logic & Procurement Value |
| High-End Kitchen Cabinetry | ★★★★★ (Top Choice) | Concealed rails protect hardware from grease/debris while supporting heavy pots and pan storage. |
| Custom Living Room Millwork | ★★★★★ (Top Choice) | Full extension brings total visibility to deep drawers; 3D handles allow perfect, uniform door gaps. |
| Wide Furniture Drawers | ★★★★★ (Critical) | Synchronized gear mechanisms prevent wide drawer boxes from racking or catching when pulled off-center. |
| Commercial Office Credenzas | ★★★★☆ (High) | 50,000-cycle durability rating ensures reliable performance in high-frequency commercial office environments. |
Why Sourcing From MINVEE
Direct Ex-Factory Pricing: Manufactured on automated stamping and assembly lines in Jieyang, delivering direct wholesale margins without trading markups.
Complete System Compatibility: Engineering parameters strictly match standard European 32mm system line-boring patterns for effortless integration into CNC workflows.
Full OEM/ODM Support: Custom length batching, custom brand laser-marking on metal tracks, and tailor-made retail/industrial carton packaging options available.
Container Optimization: Easily consolidated alongside our standard 35mm hydraulic hinges and ball-bearing slides under a single shipping contract to minimize landed ocean freight.
FAQ
Why is synchronization critical on 3-section undermount slides?
Without synchronization, the mid and front extension rails on long or wide undermount slides can move out of sequence. This causes drawer “racking”—where one side pulls faster than the other, creating friction and misalignment. Minvee’s synchronized gear system locks both sides together for a smooth, linear pull every time.
How does the 3D handle simplify field installation?
Cabinet carcasses and wooden drawer boxes often have minor dimensional variances. Instead of loosening mounting screws or shimming the rails to align the drawer face, installers simply turn the green thumb-wheels on the undermount handles to micro-adjust height, lateral side-drift, and depth gaps in seconds.
Can these slides be installed on internal (flush-inset) drawers?

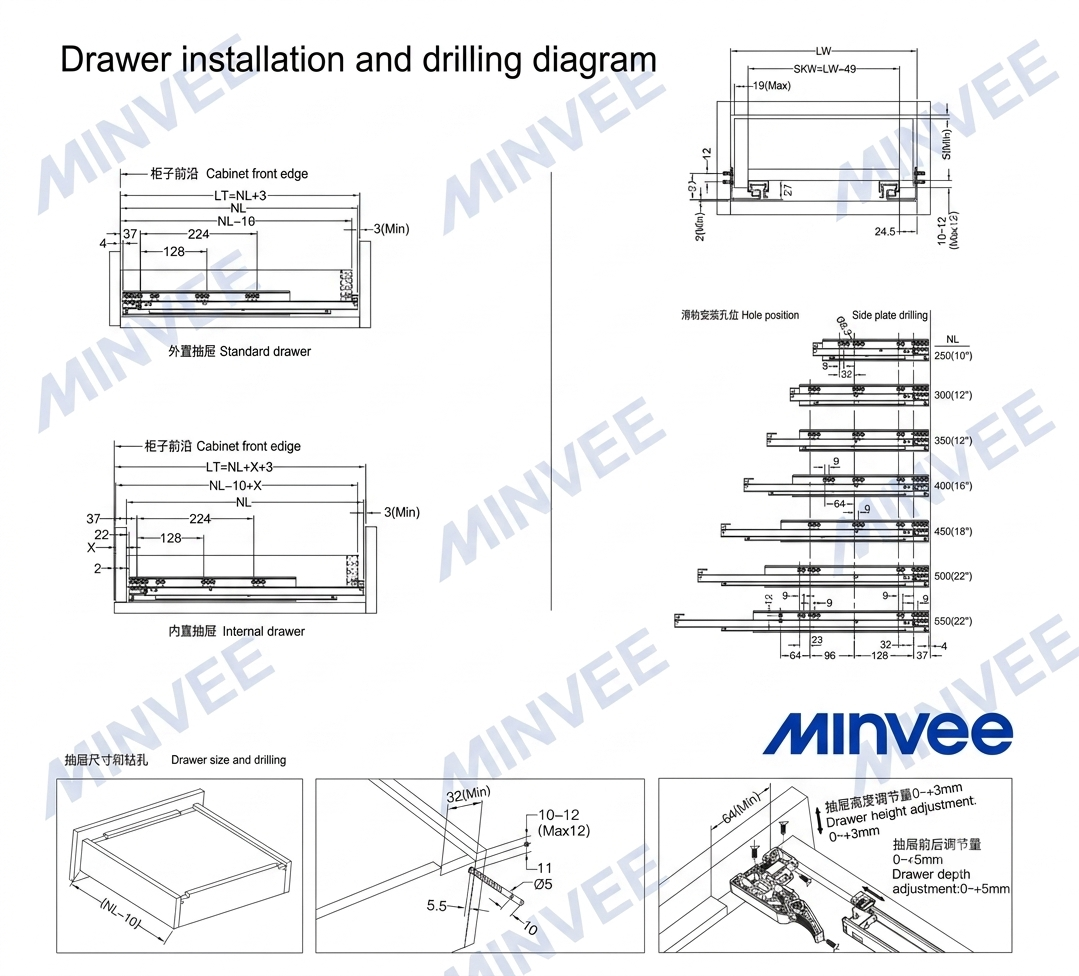

Yes. The engineering schematic supports both standard overlay drawer fronts and internal flush drawers. For internal drawer applications, increase the cabinet interior clearance depth to account for the inset panel (LT = NL + X + 3mm).
What is the recommended drawer side panel thickness for this model?
These slides are optimized for standard drawer side panel board thicknesses up to 16mm (or max 19mm depending on inner box dimensions), maintaining a standard cabinet interior width formula (SKW = LW – 49mm).
