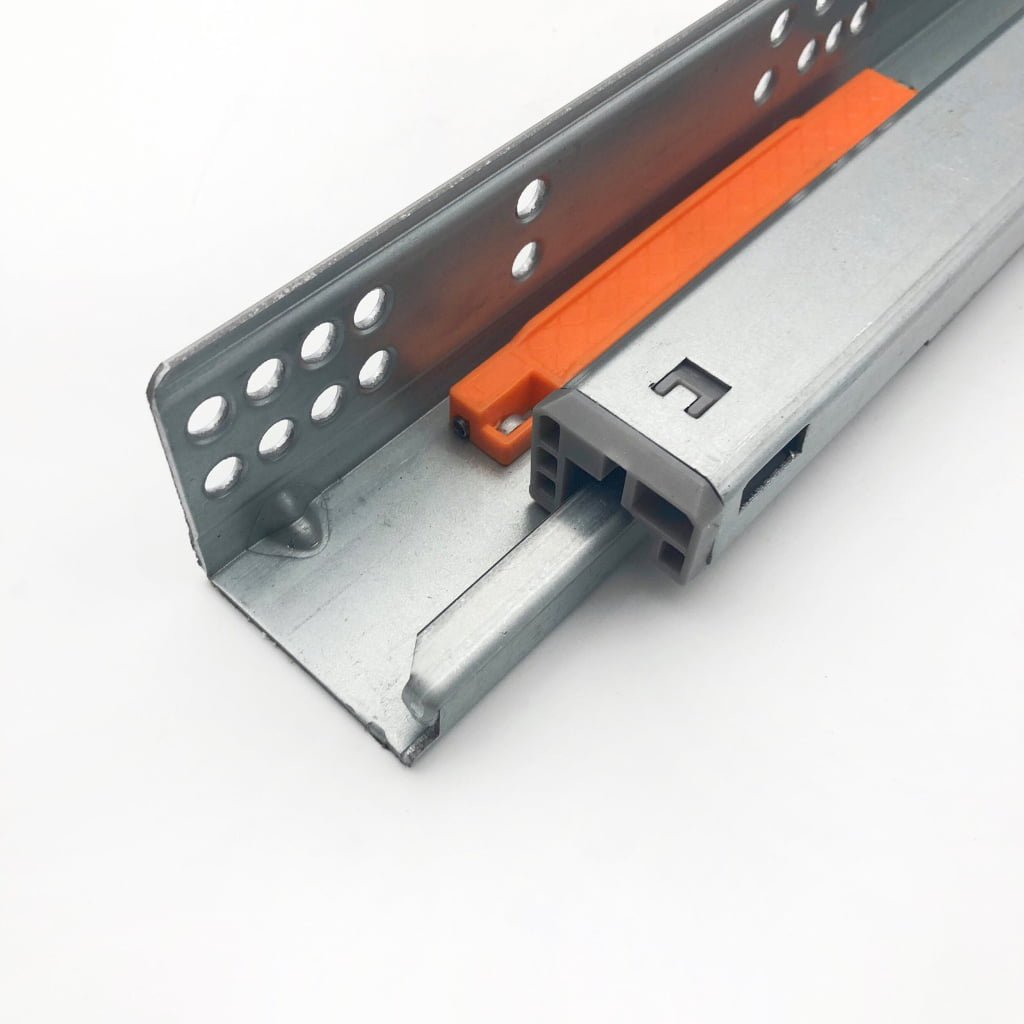

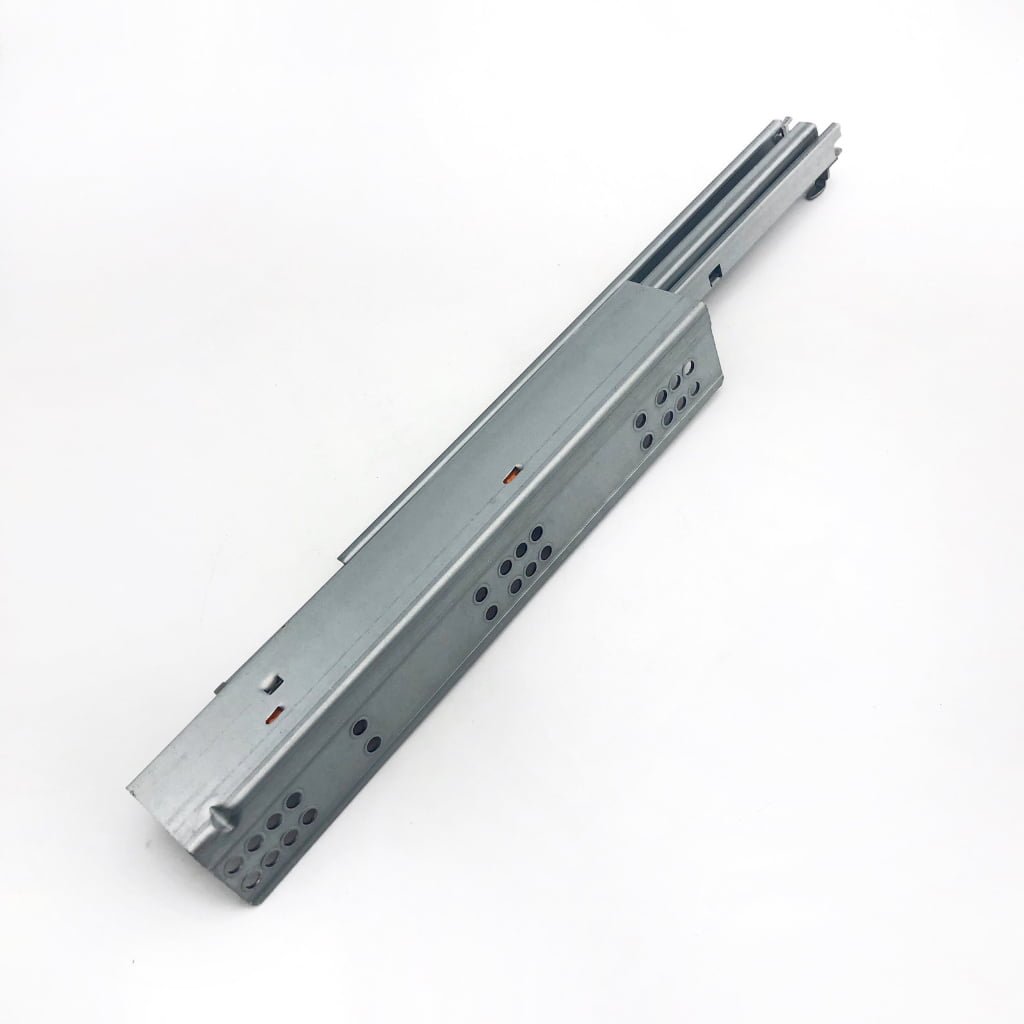

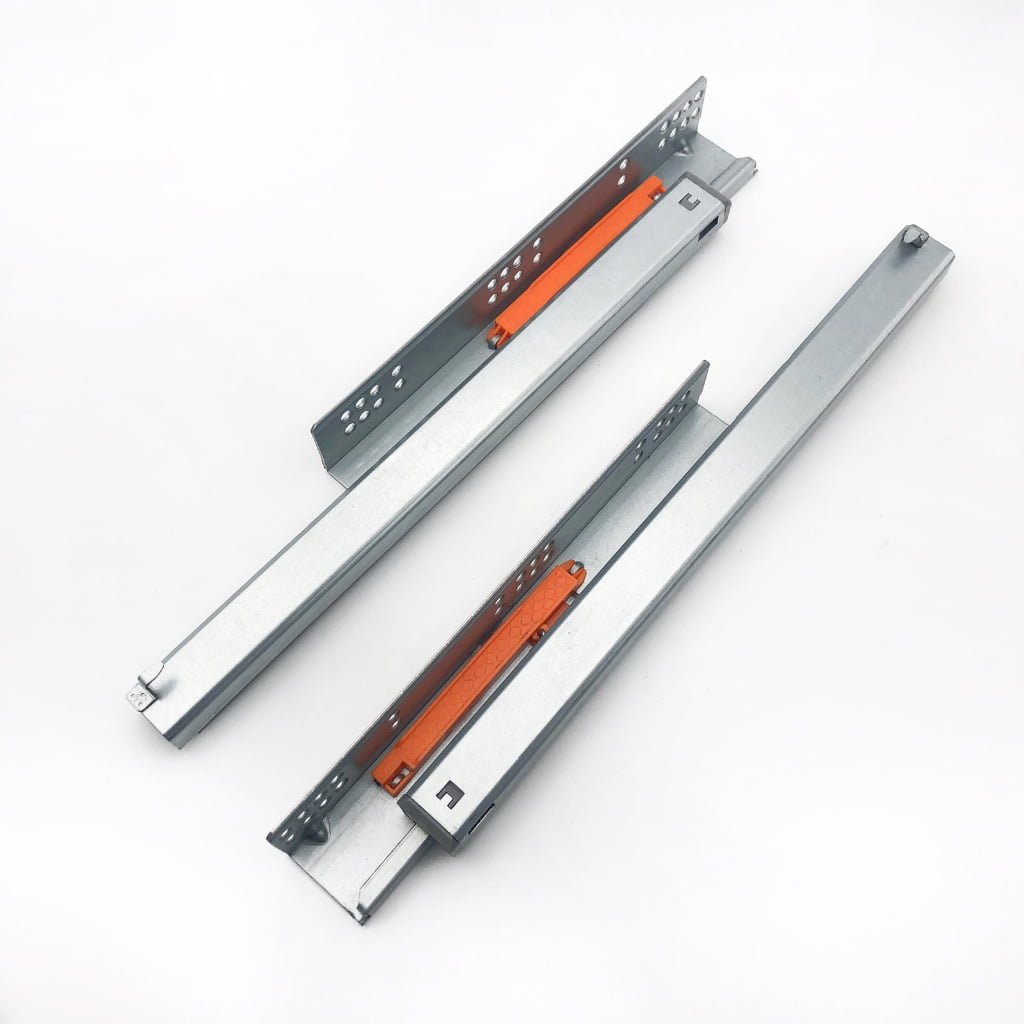

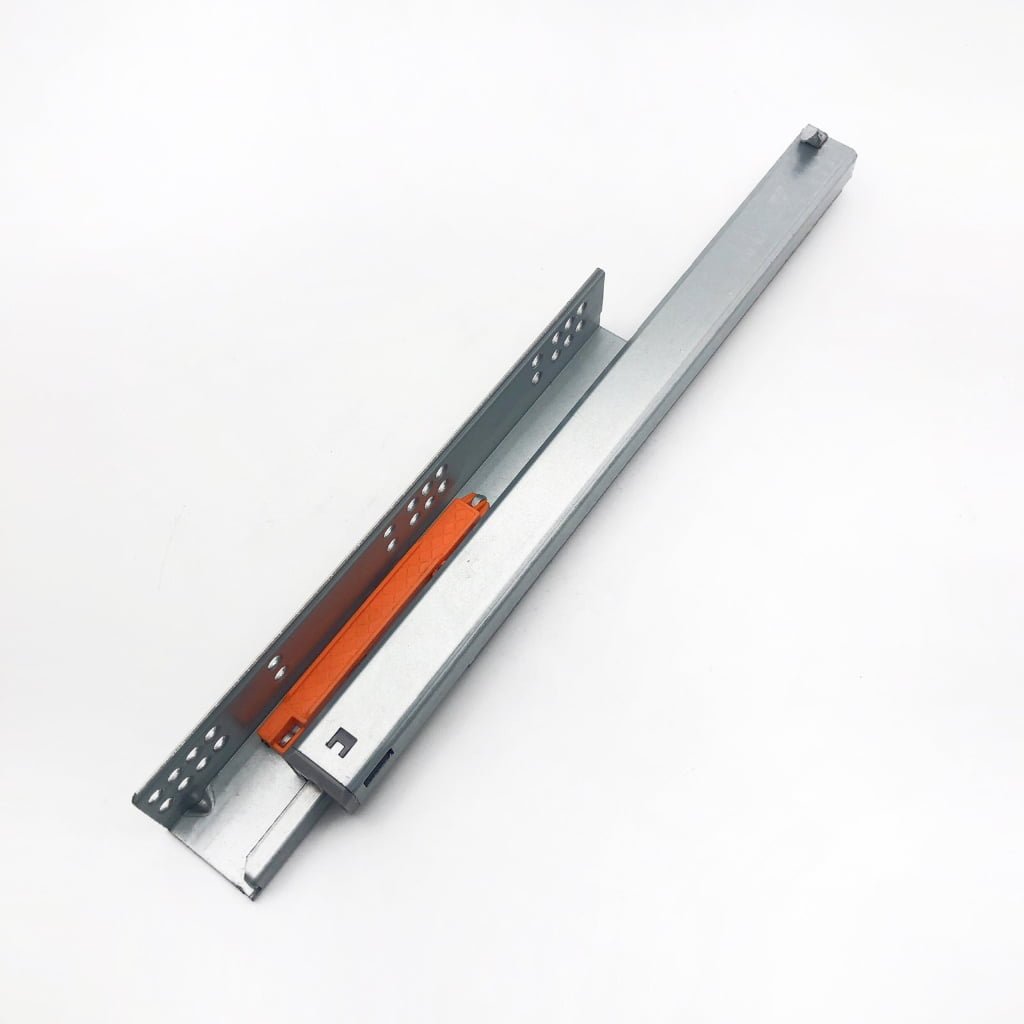

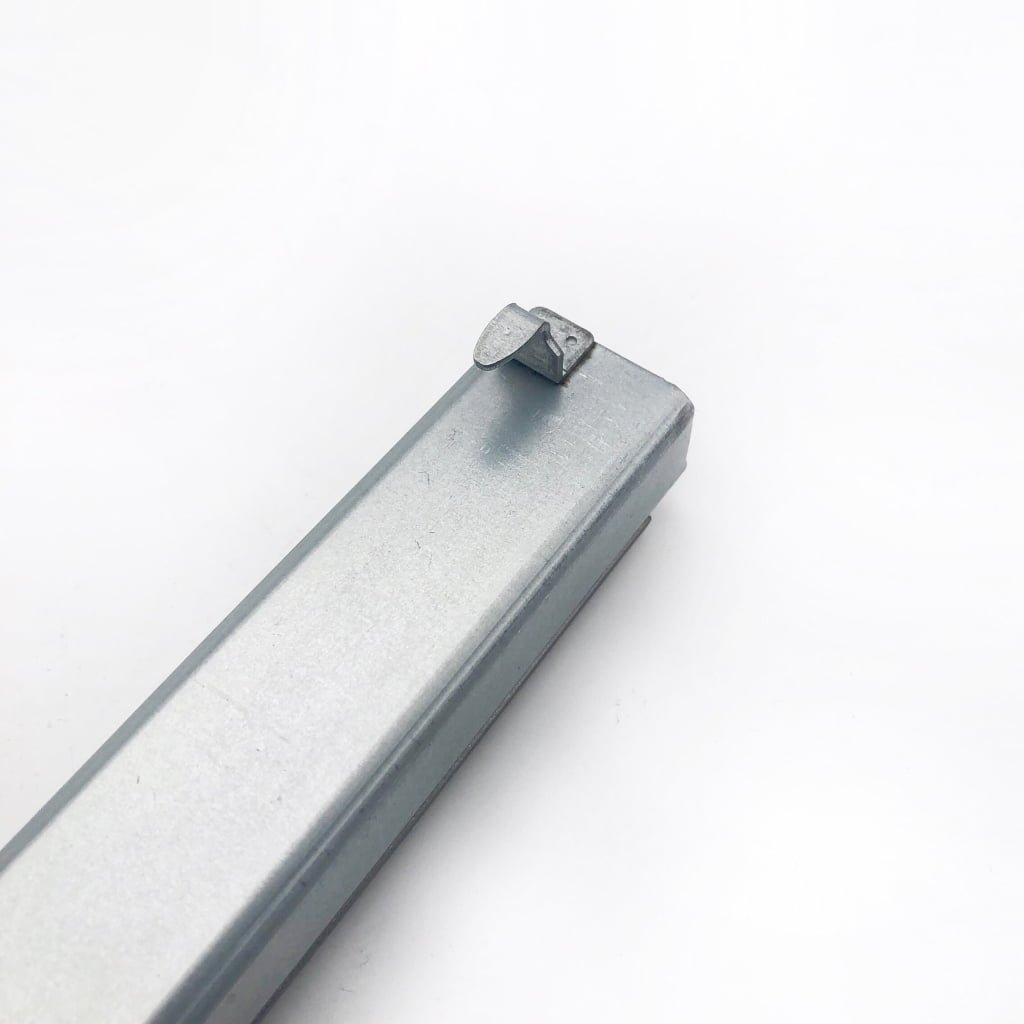

Wholesale 3-Fold Undermount Push-Open Slides with 3D Adjustment Handle
Our Premium Undermount Series is engineered for high-end cabinetry where hardware must be felt, not seen. Combining a concealed structure with Push-to-Open functionality, these slides enable a completely handleless aesthetic while offering the most precise alignment in the industry via 3D adjustment clips.
Product Overview
Unlike standard side-mount slides, our undermount runners are installed beneath the drawer box, protecting the mechanism from dust while showcasing the furniture’s design. The 3-fold full-extension design ensures every inch of the drawer is accessible.
Key Advantages
-
Push-to-Open Mechanical Trigger: High-sensitivity trigger allows the drawer to pop out with a light touch, eliminating the need for external handles.
-

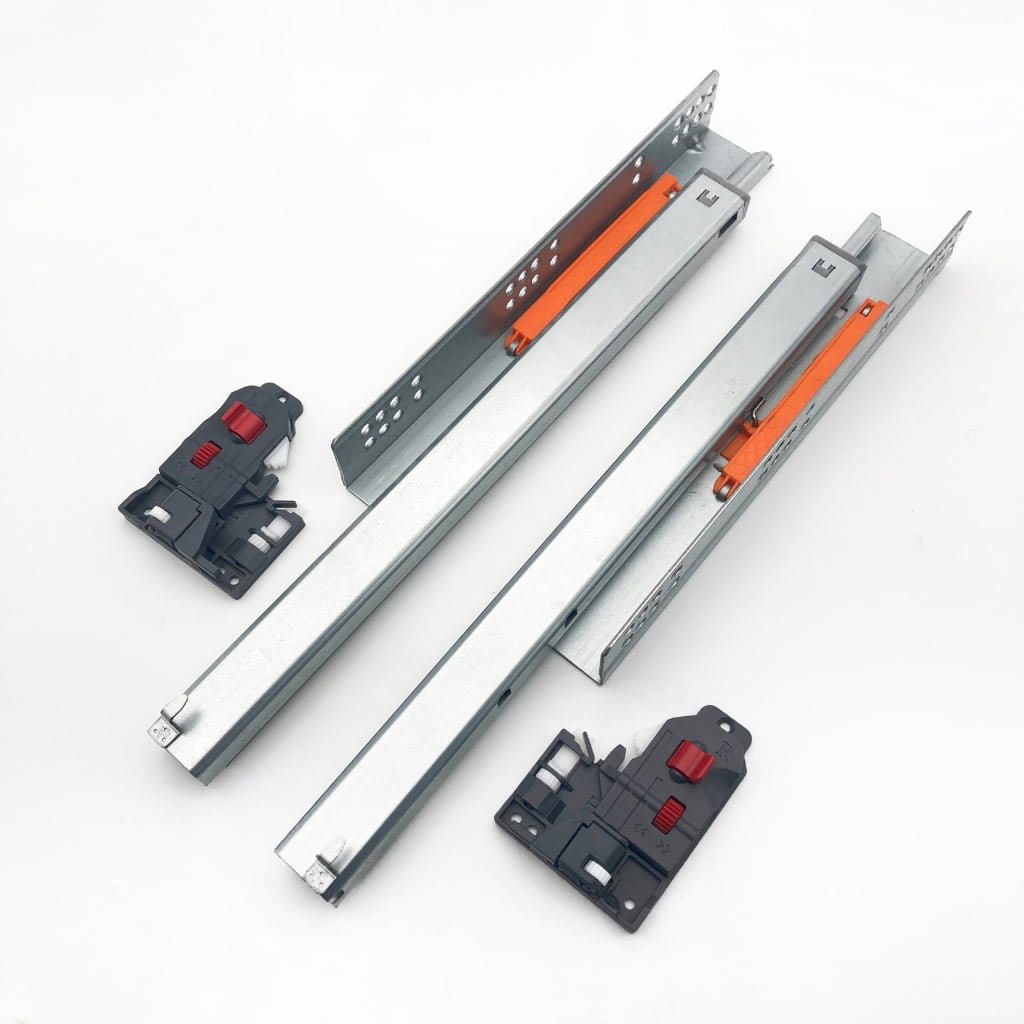

3D Precision Adjustment Clips: Includes specialized 3D front locking clips for Vertical (0-3mm), Horizontal (±1.5mm), and Depth (0-4mm) adjustment, ensuring perfect cabinet gaps.
-
Full-Extension Synchronized Movement: Three-section rails provide total access to the drawer interior with zero “lag” during movement.
-
Heavy-Duty Galvanized Steel: Built with high-tensile 1.8/1.5/1.0mm steel (customizable) to prevent sagging under heavy loads.
Application
-
High-End Kitchen & Bathroom Vanities: Concealed design protects the rails from moisture and spills.
-
Minimalist Bedroom Wardrobes: Supports the “Handleless” trend in modern interior design.
-
Executive Office Furniture: Delivers a silent, premium feel for filing and storage units.
-
Solid Wood Custom Cabinetry: Specifically designed to complement high-quality wood drawer boxes.
Customization & Configuration Options
-
Load Capacity: Standard 35kg or reinforced 45kg options available for deep drawers.
-
Length Range: 250mm to 600mm (10 to 24 inches) to fit all standard cabinet depths.
-
Material Finish: Zinc-plated for superior corrosion resistance (Passes 48H/72H Salt Spray Test).
-
Packaging Options: Bulk industrial packaging (10 sets/carton) for factories or color-box retail packaging for distributors.
Quality & Testing
-
Durability Certification: Tested for 50,000+ open-close cycles under full weight load.
-
SGS Standards: Compliant with international B2B quality benchmarks for furniture hardware.
-
