Product Overview
The MINVEE Hydraulic Gas Spring Support is a high-performance pneumatic lift solution designed for overhead kitchen cabinet doors, aluminum-frame glass flaps, and downward-opening panel doors. Engineered with a precision-drawn steel stroke rod, a durable air chamber, and quick-release rotary lock connectors, this series delivers smooth lifting force, reliable hold-open stability, and quiet soft-dampening performance.
Technical Specifications
| Specification Parameter | Value / Technical Standard |
| Main Material | Iron + Damping Plastic / Copper + Damping Plastic |
| Gas Pipe Dimensions | 15mm × 1.0mm outer cylinder diameter |
| Piston Rod Diameter | 6.0mm solid steel stroke rod |
| Standard Mounting Length | 245 mm (10″) / Options for 6″, 8″, 10″, 12″ |
| Available Force Ratings | 50N, 60N, 80N, 100N, 120N, 150N, 180N, 200N, 250N |

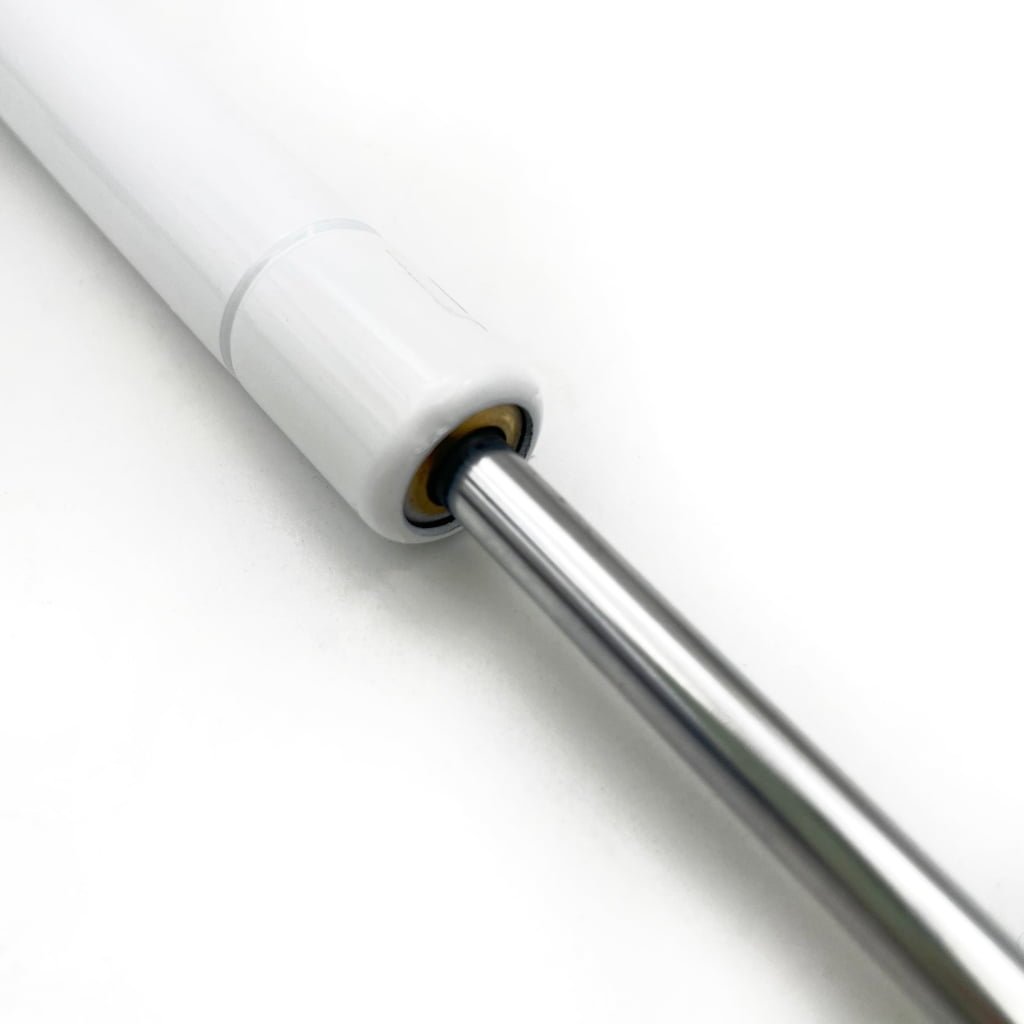

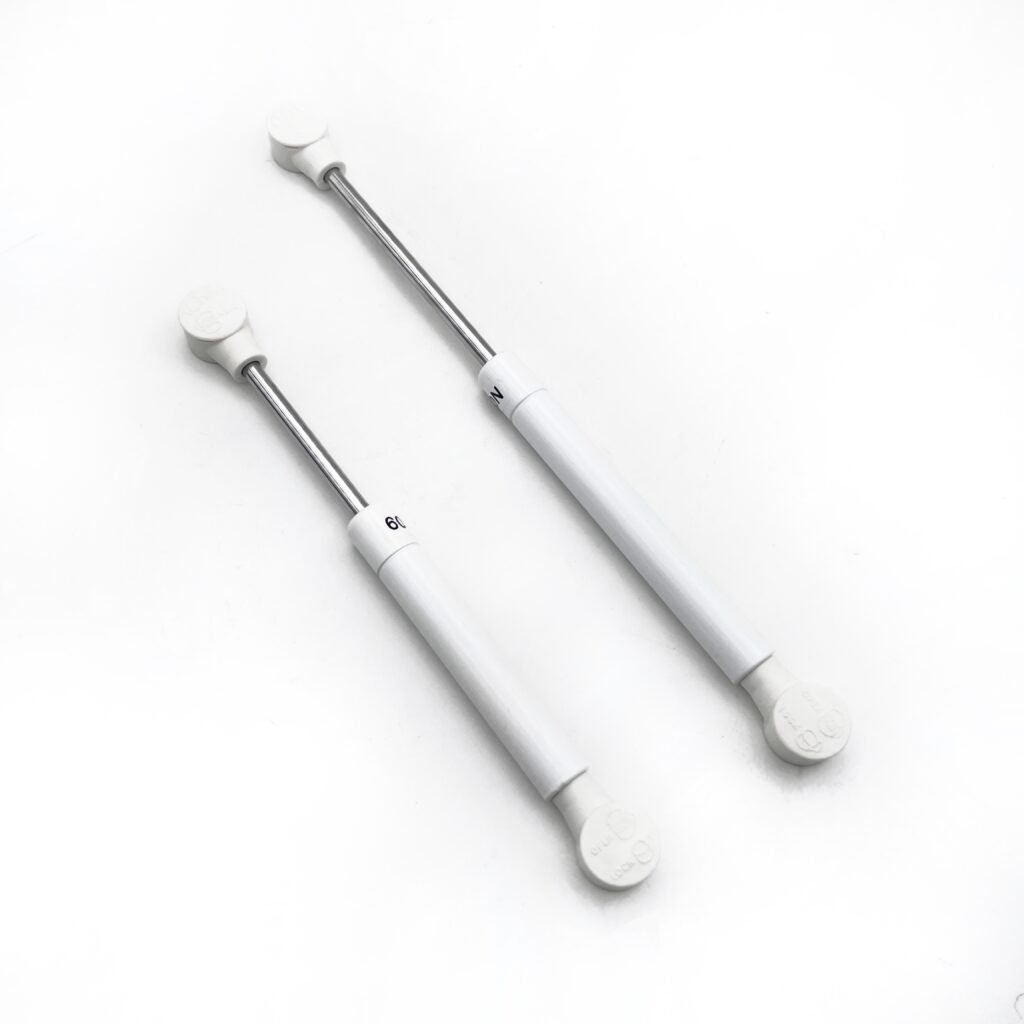

| Surface Finish Options | Metallic Silver Grey / Matte Black / Clean White |
| Connector Type | Dual Rotary Snap-Lock End Connectors (“OPEN / LOCK” indicator) |
| Applications | Upturned wooden cabinet doors, aluminum frame doors, drop-down storage panels |
Key Features & Product Highlights
1. High-Density Air Chamber & Hydraulic Seal
Constructed with a heavy-wall gas cylinder and a leak-proof hydraulic seal ring. Maintains constant internal nitrogen pressure across high-frequency daily usage without pressure loss.

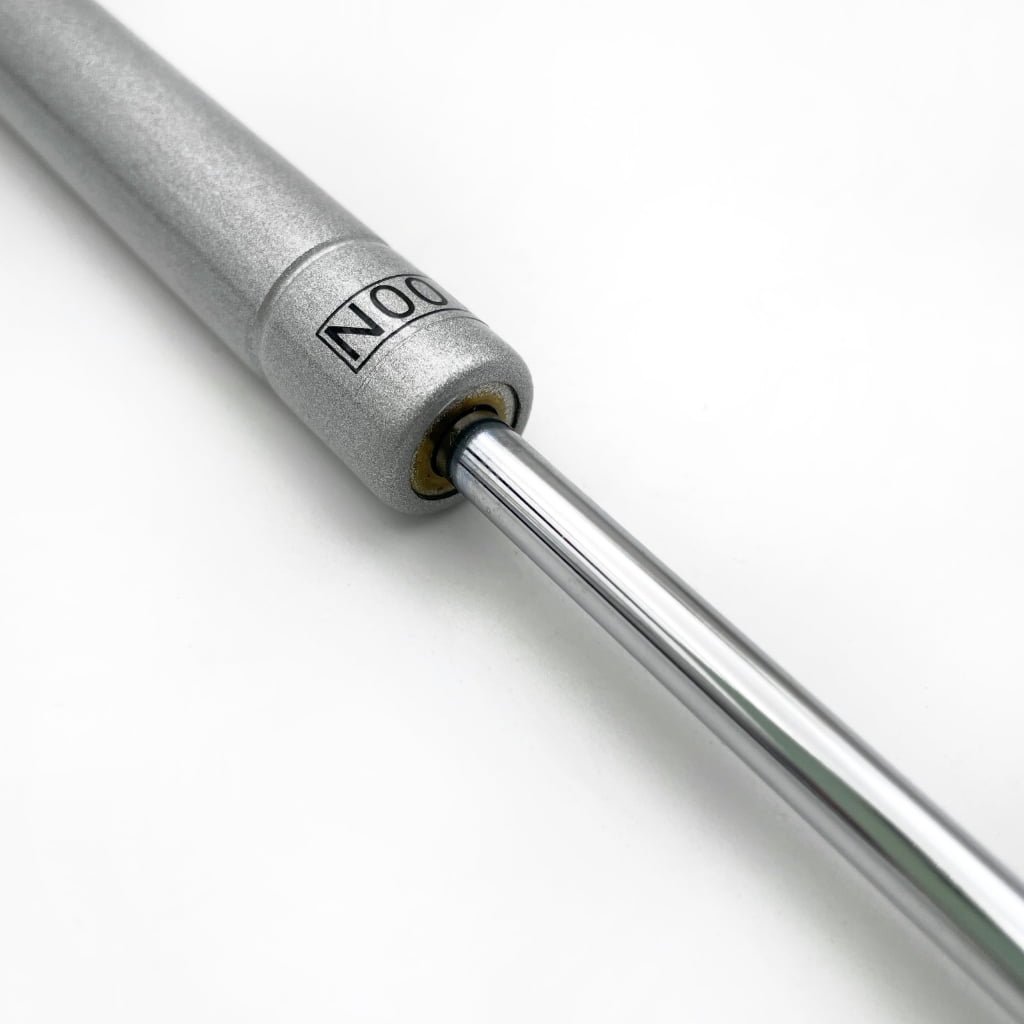

2. Solid 6.0mm Chrome-Plated Piston Rod
Features a precision-machined solid stroke rod treated with advanced eco-friendly spraying and plating technology. Resists corrosion, oxidation, and mechanical friction for long-lasting, smooth extension cycles.

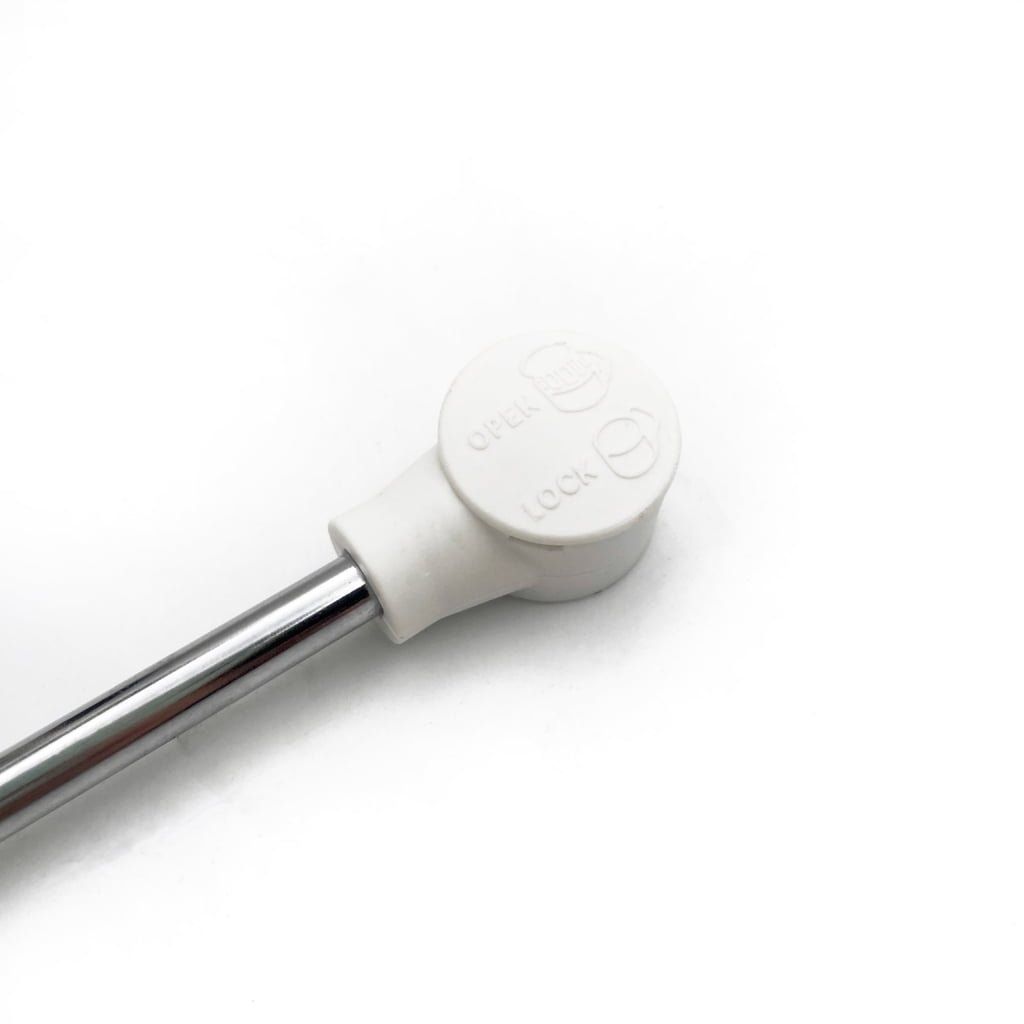

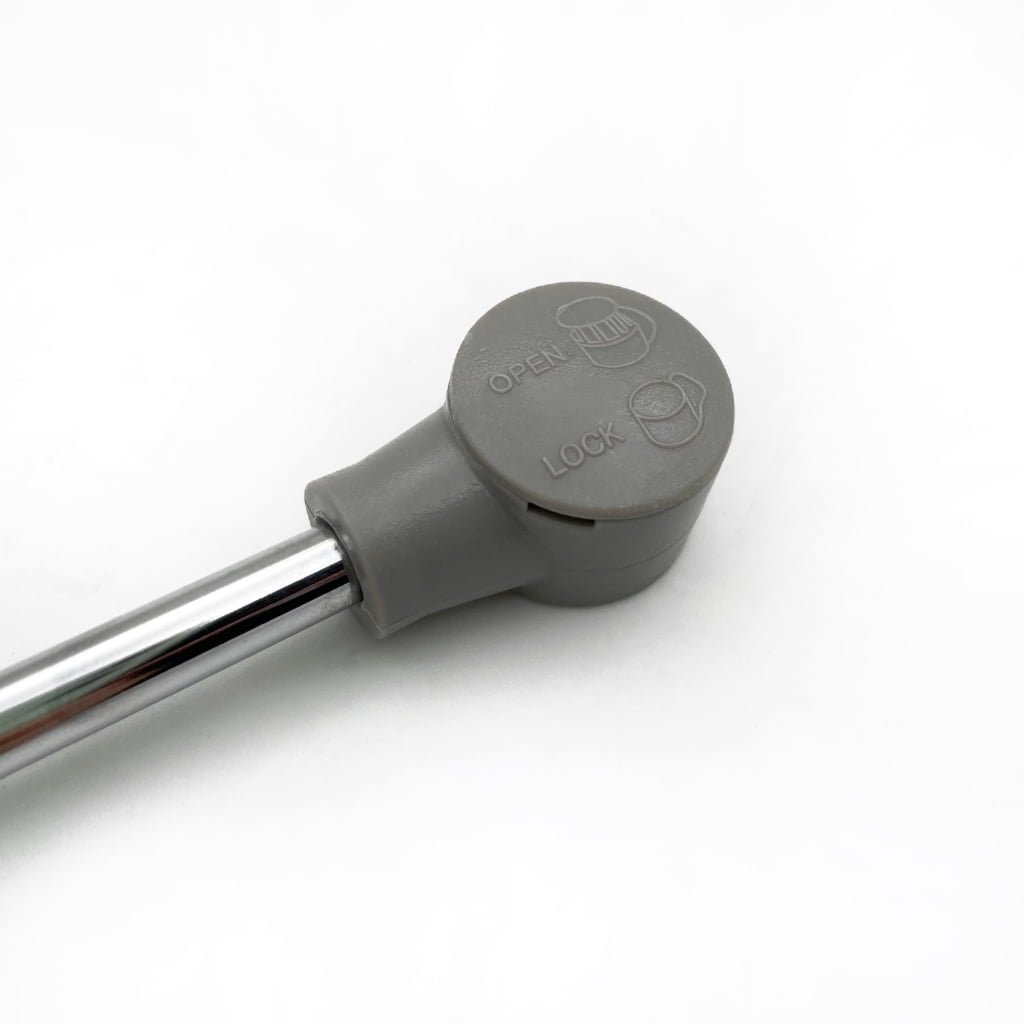

3. Tool-Free “OPEN / LOCK” Rotary End Connectors
Equipped with ergonomic rotary snap-on socket ends. The clear “OPEN / LOCK” directional indicator allows installers to easily snap the strut onto the ball-joint mounting brackets without extra tools, speeding up assembly lines.
4. Flexible Multi-Angle Opening & Universal Accessories

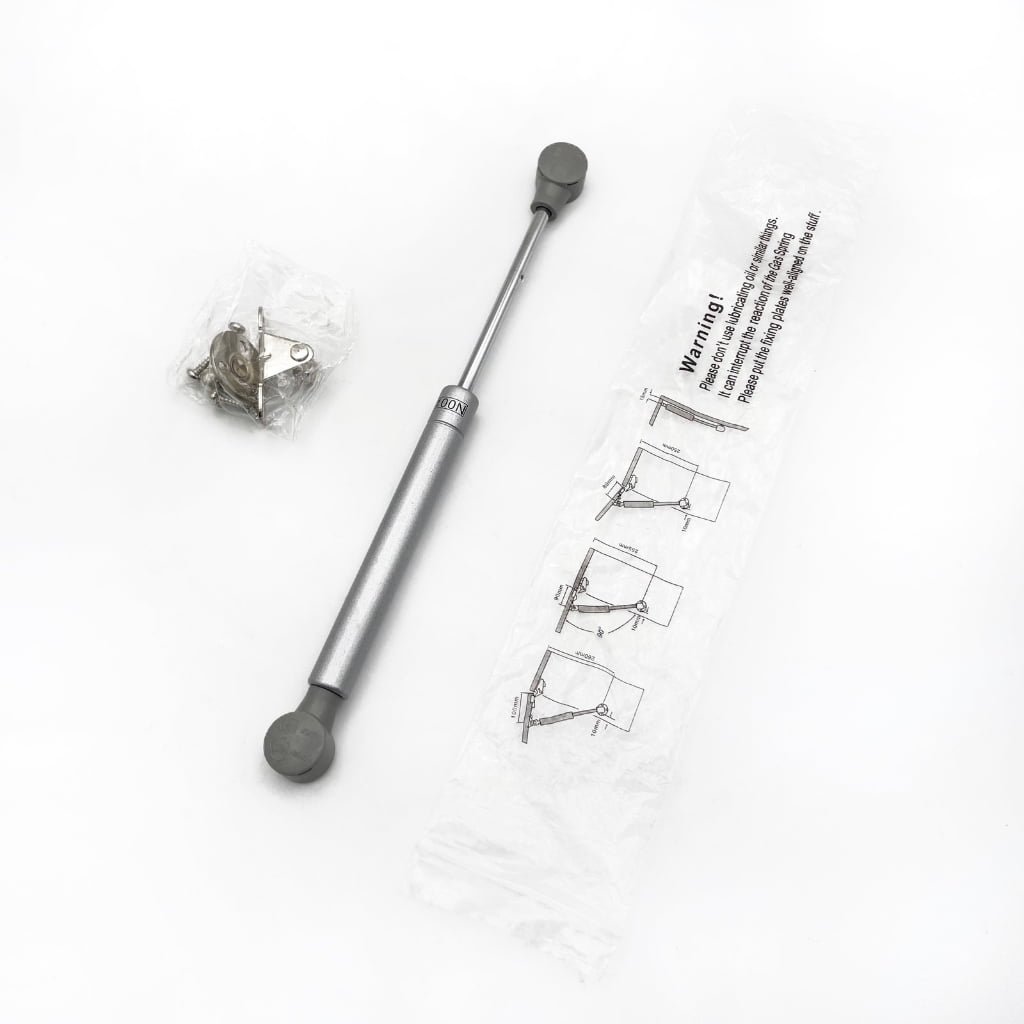

Supports multiple opening angles 80°, 90°, and 110° up-lifting or 90° down-lifting). Includes complete mounting kits: steel screws, side-mount plates, circular metal discs, and ball studs.
Force Selection Guide (Newton Ratings)
| Force Rating (Newton) | Door Weight Load Range | Recommended Panel Application |
| 50N – 60N | 5 kg – 6 kg | Lightweight panel doors, small overhead spice racks, narrow aluminum glass doors. |
| 80N – 100N (Standard) | 8 kg – 10 kg | Standard kitchen wall cabinet doors, bedroom lift-up panels. |
| 120N – 150N | 12 kg – 15 kg | Large solid wood doors, heavy office storage cabinets. |
| 180N – 250N | 18 kg – 25 kg | Industrial/commercial heavy-duty upward flap doors. |
Installation & Mounting References
Up-Lifting Cabinet Door
80° Opening: Position upper bracket 100mm from cabinet top; lower pivot 200mm down.
90° Opening: Position upper bracket 90mm from cabinet top; lower pivot 250mm down.
110° Opening: Position upper bracket 80mm from cabinet top; lower pivot 250mm down.
Down-Lifting Cabinet Door
90° Downward Drop: Upper pivot placed 10mm inside cabinet lip; vertical clearance 240mm, base offset 100mm.
Why Source Hydraulic Gas Springs from MINVEE?
Direct Factory Production: Manufactured in Jieyang, Guangdong, ensuring competitive direct supply prices for importers and hardware distributors.
Complete OEM/ODM Options: Custom force specifications (N-ratings), cylinder length variations, and private logo branding on polybags or cylinders.
FCL Container Consolidation: Compact export packaging makes gas springs an ideal high-density container filler alongside MINVEE drawer slides and hydraulic hinges.
