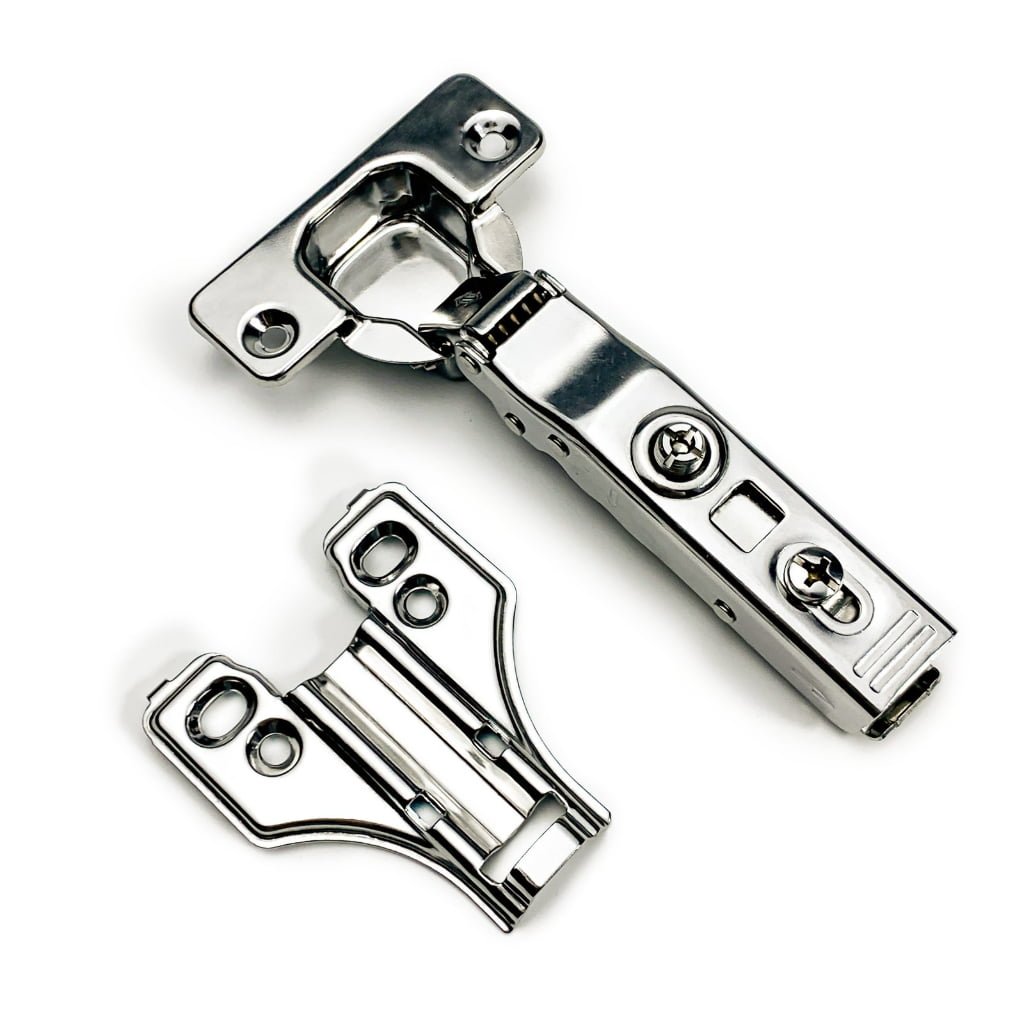

MINVEE Stainless Steel Hydraulic Soft Close Cabinet Hinge (Easy Positioning Hook)
Product Overview
The MINVEE Stainless Steel Hydraulic Cabinet Hinge is engineered for premium kitchen and bathroom furniture requiring exceptional moisture resistance and structural precision. Crafted from high-grade stainless steel and fitted with a heavy-duty pure brass hydraulic cylinder, this hinge guarantees long-lasting anti-corrosion performance and smooth, silent door closing. Featuring an innovative easy-positioning hook structure on the base plate, it simplifies jobsite fitting by holding the hinge securely in place prior to screw fastening, reducing installation errors and labor time.
Technical Specifications
| Specification Parameter | Technical Standard / Details |
| Product Model | MINVEE Stainless Steel Hook-Positioning Hydraulic Series |
| Core Material | High-Grade Stainless Steel (SUS201 / SUS304 Options) |
| Dampening Mechanism | Solid Brass Hydraulic Damper Cylinder (Anti-Leak & Rustproof) |
| Special Base Feature | Integrated Easy Positioning Hooks for Alignment |
| Adjustment Capacity | Precision Depth & Overlay Cam Screw Micro-Adjustment |
| Base Attachment | Tool-Free Clip-On Quick-Release Mechanism |
| Hinge Cup Specifications | 35 mm Cup Diameter | 11.5 mm Cup Depth |

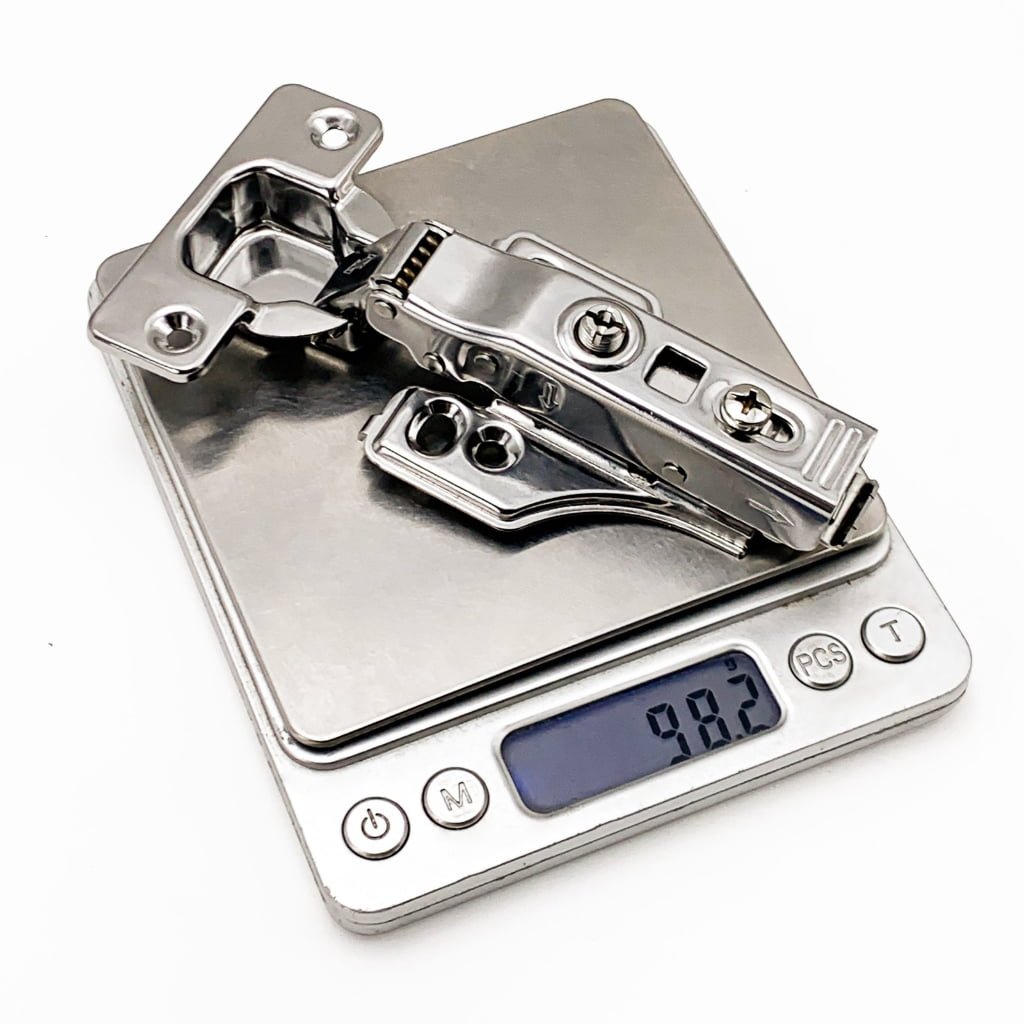

| Net Weight | Approx. 98 g per piece |
| Durability Standard | 50,000+ Cycles Durability & Passed Neutral Salt Spray Testing |
Key Technical Features
Premium Stainless Steel Construction: Superior rust and corrosion resistance makes it ideal for high-humidity environments like kitchen cabinets and bathroom vanities.
Easy Positioning Hook Design: Built-in hooks on the hinge plate anchor into pre-drilled holes instantly, preventing slippage and speeding up cabinet assembly.

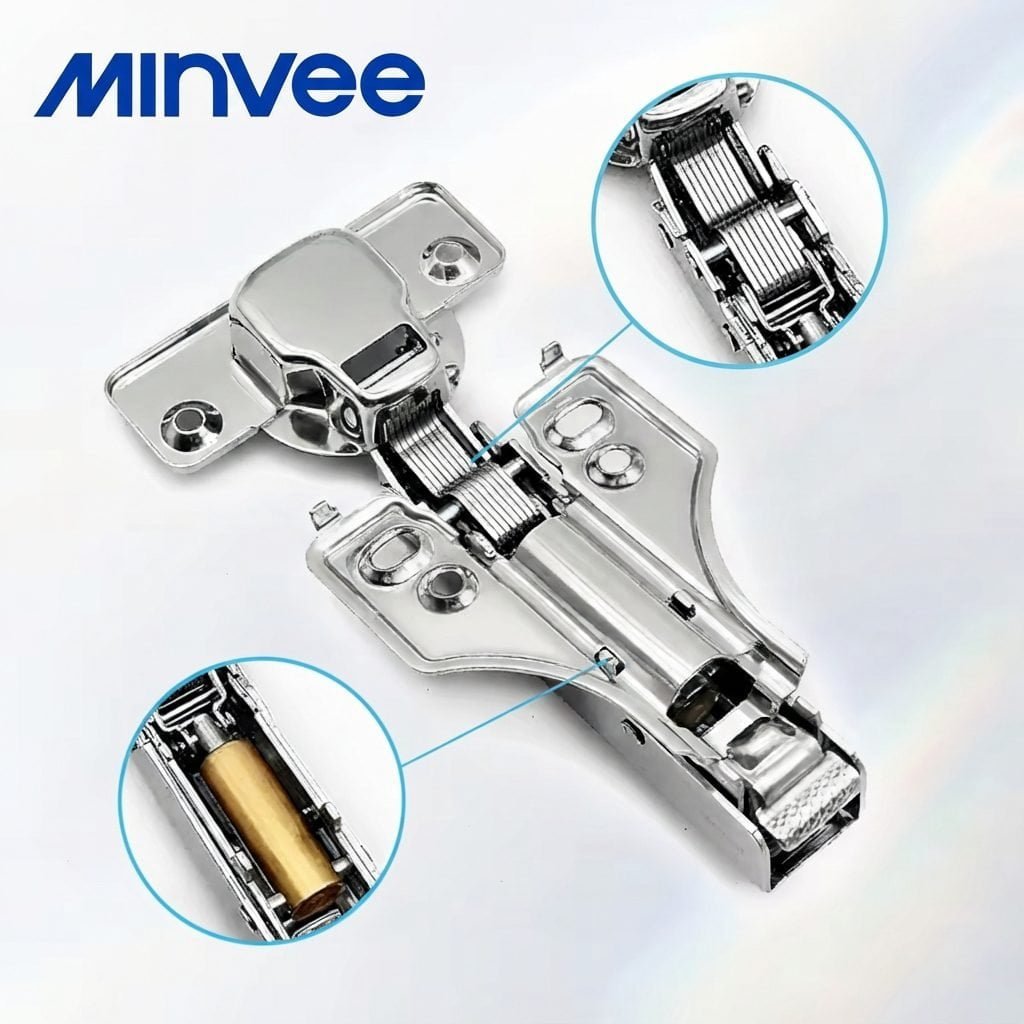

Solid Brass Hydraulic Cylinder: Upgraded pure brass damper provides smooth, leak-free fluid resistance for long-term soft-closing performance.
Tool-Free Clip-On Assembly: Quick-release trigger allows workers to attach and detach doors instantly without tools, saving significant factory and site time.
Precision Cam Micro-Adjustment: Integrated adjustment screws allow millimeter-level alignment for perfect, gap-free door panel fitting.
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the “positioning hook” on the hinge plate?
A: The positioning hook helps align the hinge directly with pre-drilled cabinet holes. It holds the hinge firmly in position so the installer doesn’t need to hold it manually while driving screws, ensuring higher alignment accuracy and faster installation.
Q2: Why is a brass hydraulic cylinder better than a standard steel cylinder?
A: Pure brass resists corrosion and seal degradation far better than standard iron or steel cylinders, particularly in humid kitchen environments. This prevents fluid leakage and maintains consistent dampening resistance over thousands of uses.
Q3: Is this stainless steel hinge suitable for outdoor or coastal cabinetry?
A: For standard indoor kitchens and bathrooms, our SUS201 series offers excellent protection. For marine, outdoor, or coastal environments with high salt exposure, we recommend specifying our SUS304 grade option.
Q4: What are the packaging and logo customization options for wholesale buyers?
A: Standard supply options include bulk master export packaging (200 pcs/ctn) with stainless steel screws included, or custom polybag retail sets. Custom logo laser marking on the hinge arm and branded carton printing are fully supported.
