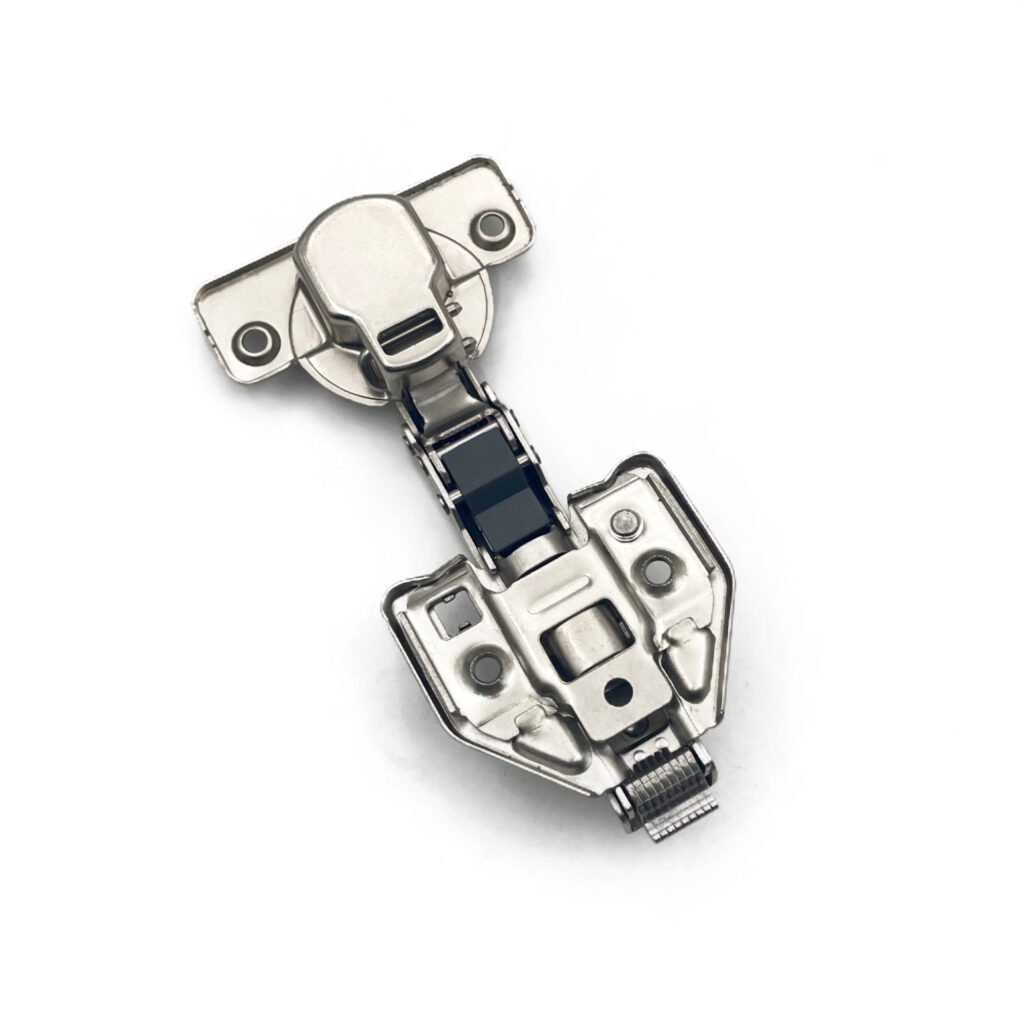

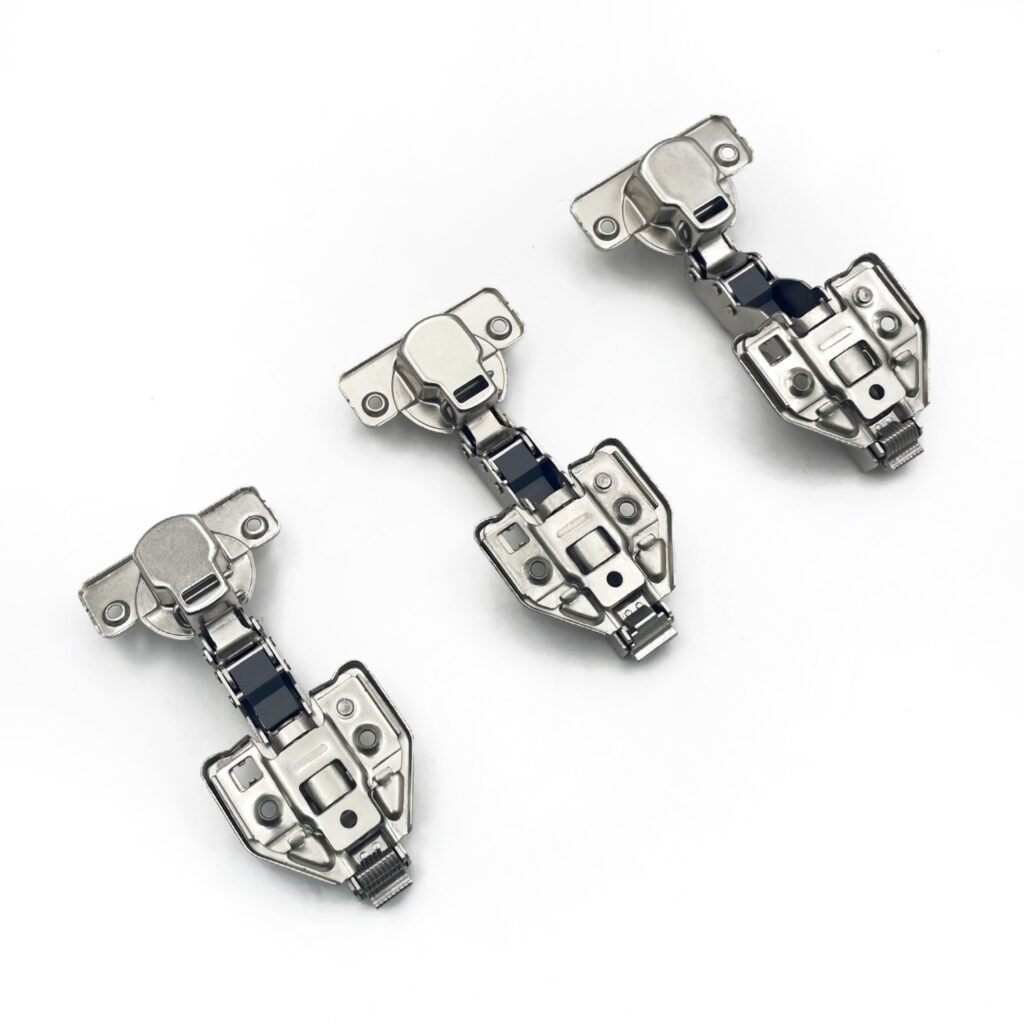

MINVEE 3D Adjustable Soft Close Hinge (Small Angle Buffering & Polymer Cylinder)
Product Overview
The MINVEE 3D Small Angle Buffering Hydraulic Hinge introduces an innovative hybrid design that combines 3D micro-adjustment precision with an engineered polymer damper housing. Replacing traditional full-metal cylinder casings with a reinforced black polymer structure, this hinge delivers superior two-way force (small angle buffering) action. The cabinet door engages gentle, silent closing even at minimal opening angles (15°-20°), eliminating abrupt slamming, protecting fingers, and providing smooth operational ergonomics across modern cabinetry.
Technical Specifications
| Specification Parameter | Technical Standard / Details |
| Product Model | MINVEE 3D Polymer Hydraulic Series (Small Angle Buffering) |
| Damper Housing Material | Reinforced High-Strength Black Engineering Polymer |
| Dampening Mechanism | Two-Way Force / Small Angle Soft Close (15°-20° Soft Engagement) |
| Adjustment Capacity | Full 3D Micro-Adjustment (Up/Down, Left/Right, Forward/Backward via Cams) |
| Base Attachment | Tool-Free Clip-On Quick-Release Butterfly Plate |
| Core Structure | Cold-Rolled Steel Hinge Body + Polymer Cylinder Module |
| Hinge Cup Specifications | 35 mm Cup Diameter | 11.5 mm Cup Depth |
| Surface Finish | Multi-Layer Electroplated Bright Nickel Coating |
| Durability Standard | Tested for 50,000+ Smooth Cycles & Salt Spray Corrosion Resistance |
Key Technical Features
Small Angle Buffering (Two-Way Force): Engineered polymer damper housing activates soft-closing action at small angles (15°-20°), preventing accidental door slams and protecting hands.
Innovative Polymer Cylinder Module: High-durability black engineering plastic replaces traditional bulky metal casings, offering smooth mechanical action, rust proofing, and lightweight structural integration.
3D Precision Cam Alignment: Integrated eccentric cam screws allow instant micro-adjustments in three directions (height, side gap, and depth) for gap-free door panel alignment.

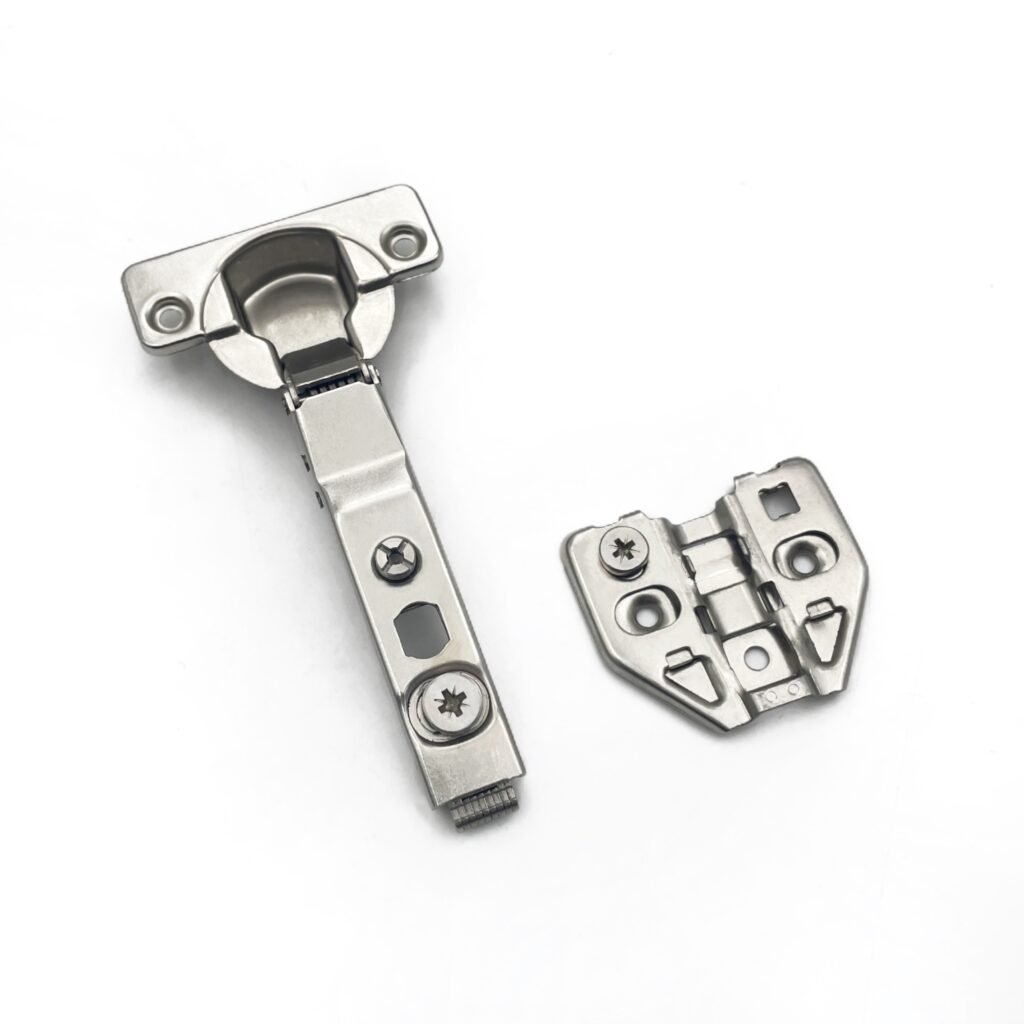

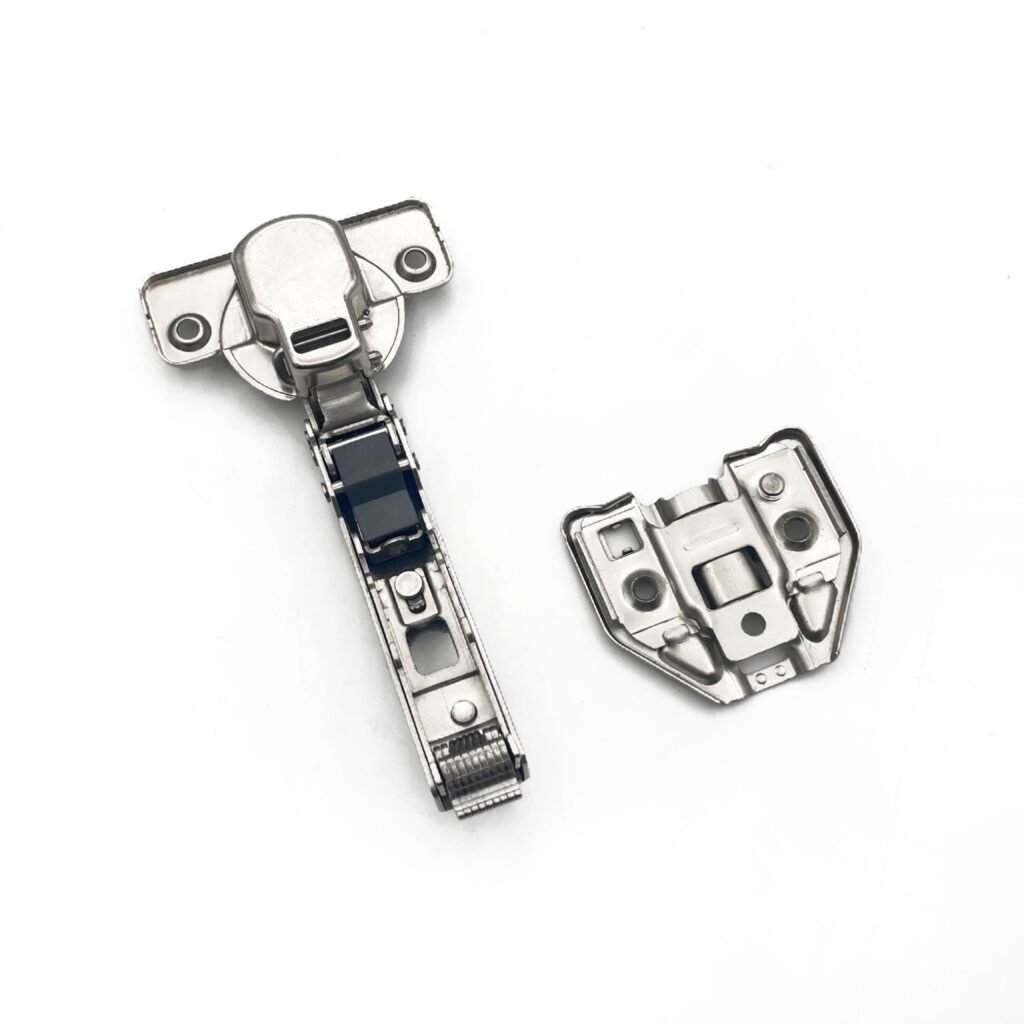

Quick Clip-On Installation: Detachable base plate enables fast, tool-free door mounting and dismounting, boosting efficiency on manufacturing lines and job sites.
Cold-Rolled Steel Durability: High-tensile steel hinge arm and cup coated with multi-layer nickel plating ensure long-term load capacity and wear resistance.
Frequently Asked Questions (FAQ)
Q1: What is “Small Angle Buffering” (Two-Way Force), and why is it useful?
A: Standard hydraulic hinges only engage soft closing when the door is opened past 45°. Small angle buffering engages hydraulic resistance even when the door is opened just 15°-20°. This prevents the door from snapping shut forcefully if bumped or partially opened, offering safer, quieter daily use.
Q2: Is the black plastic damper module durable enough for daily commercial use?
A: Yes. The black housing is molded from high-impact engineering polymer designed to withstand repeated hydraulic pressure without cracking, deforming, or rusting in kitchen or bathroom environments.
Q3: Does this hinge support full overlay, half overlay, and inset cabinet doors?

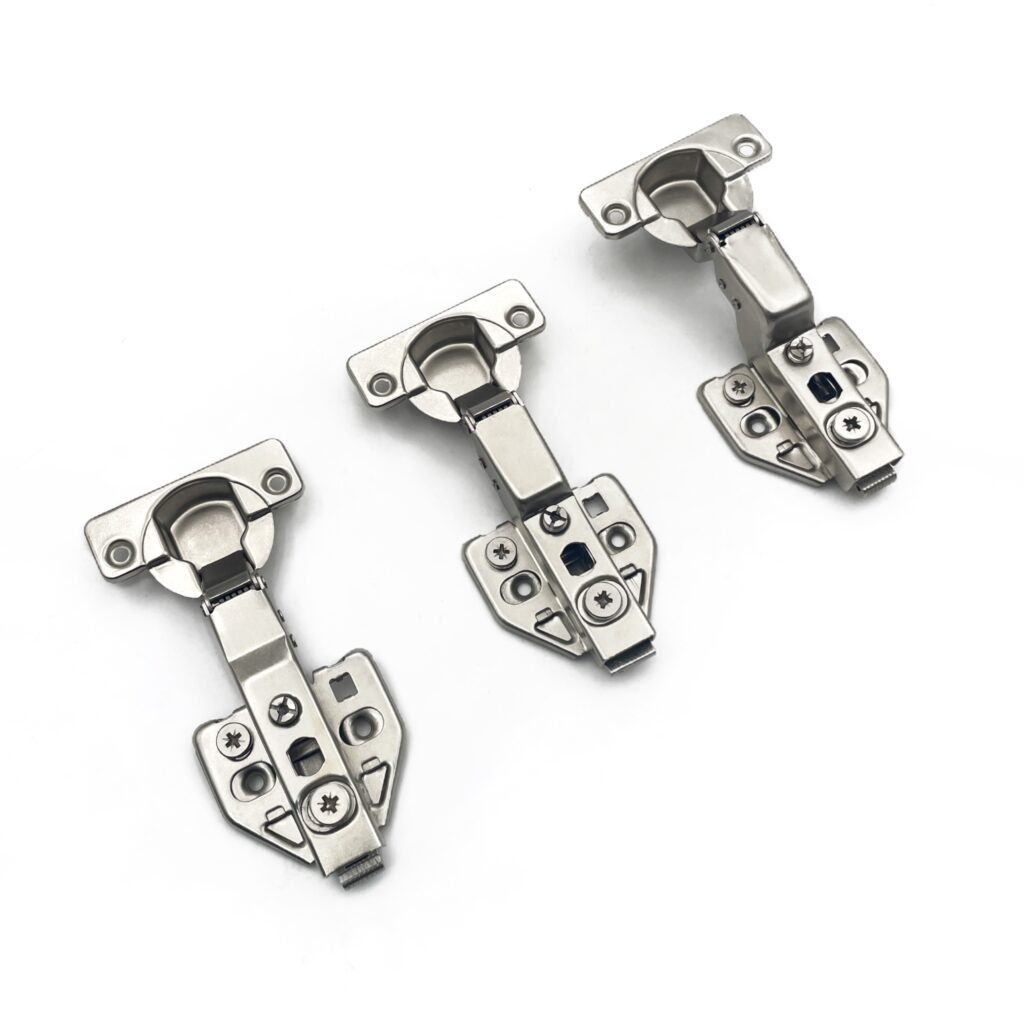

A: Yes. The 3D polymer cylinder series is available in Full Overlay (0 mm crank), Half Overlay (9 mm crank), and Inset (18 mm crank) profiles.
Q4: What are the packaging and logo customization options for wholesale orders?
A: Standard packaging includes bulk master cartons (200 pcs/ctn) or individual polybag sets with fixing screws. Custom logo stamping on hinge arm cover caps and custom inner box designs are supported for OEM/ODM buyers.
