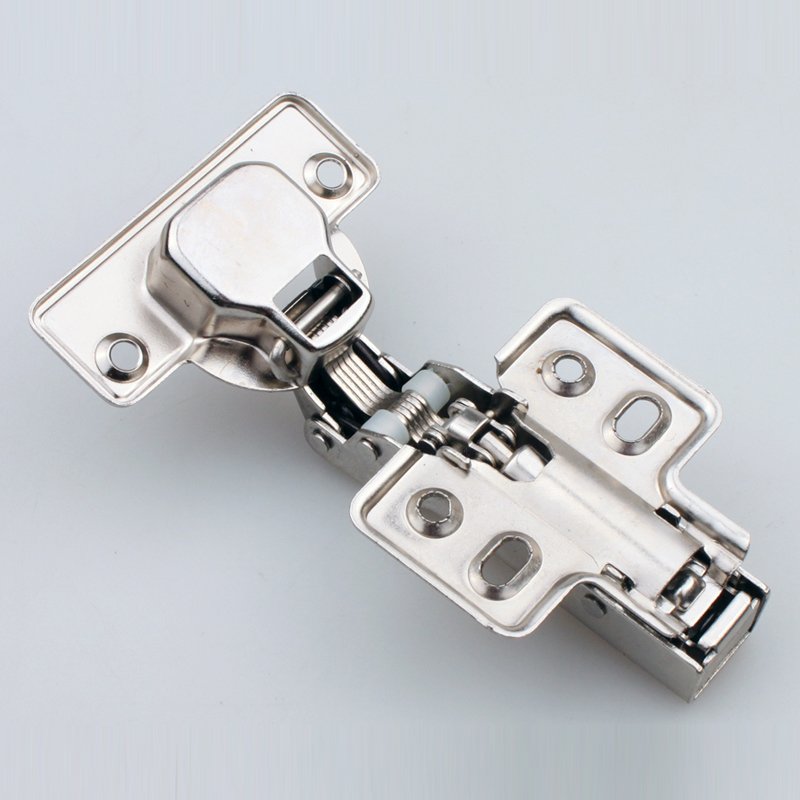

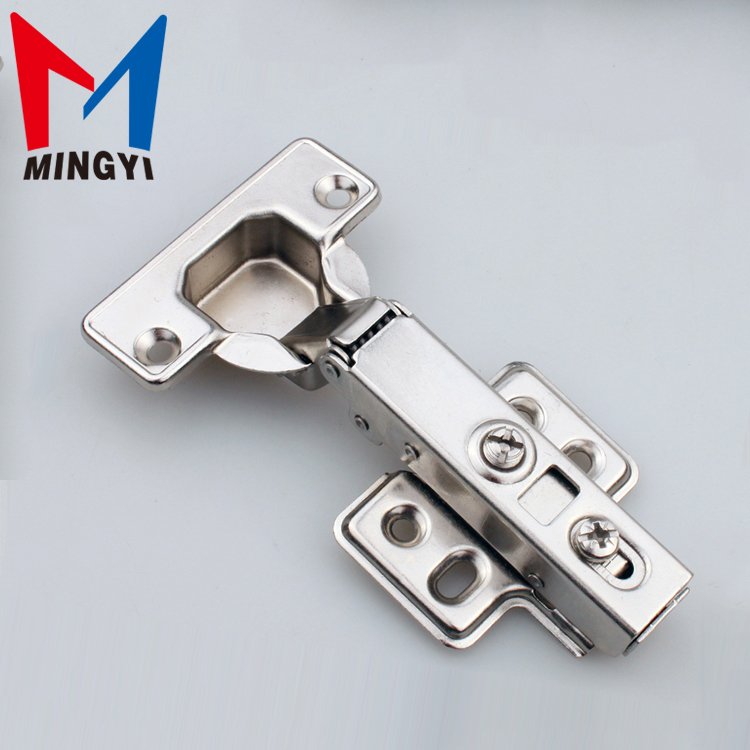

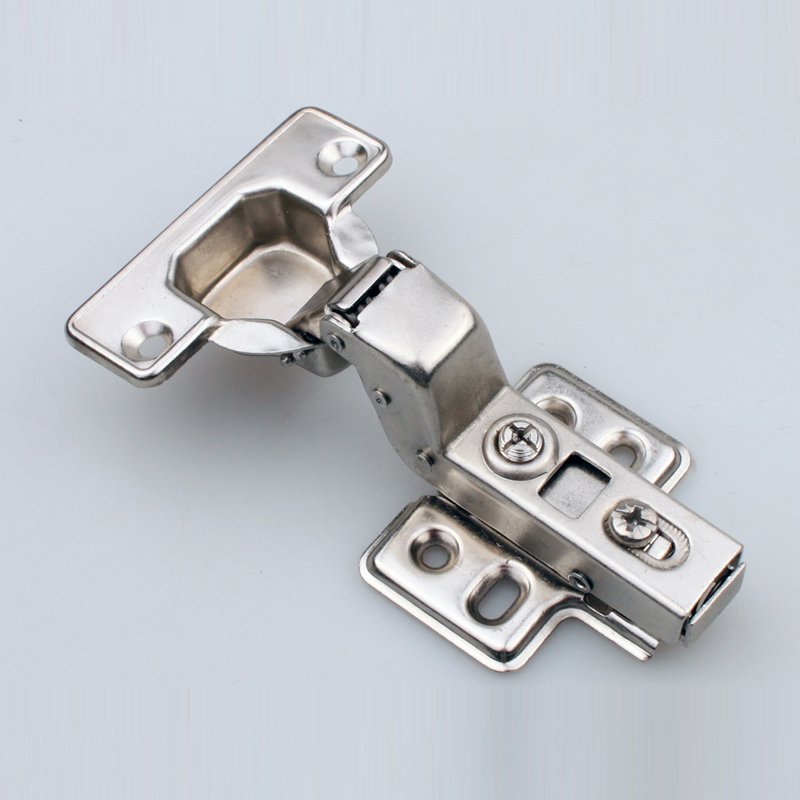

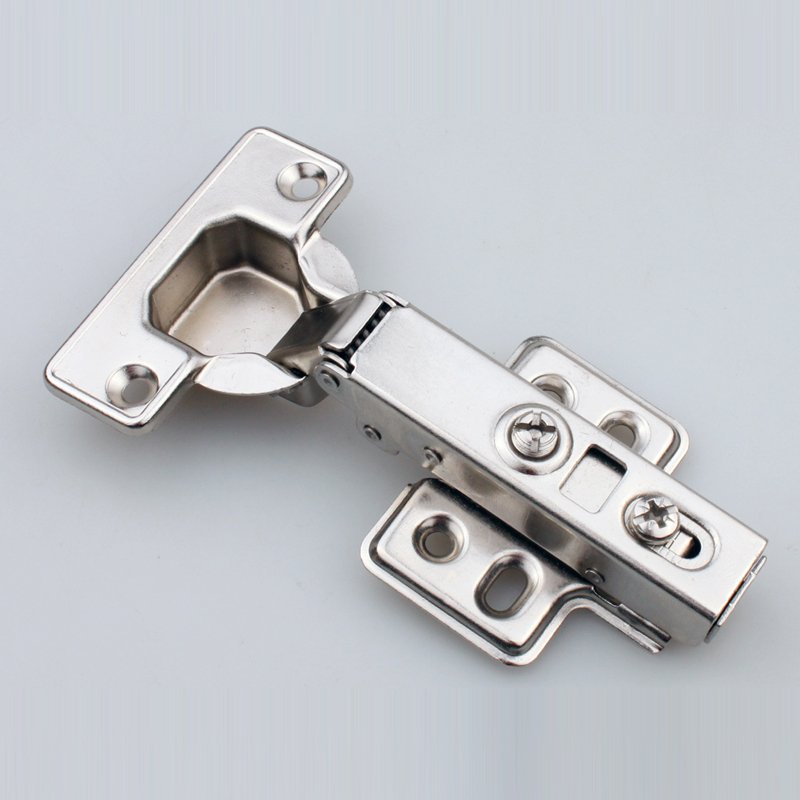

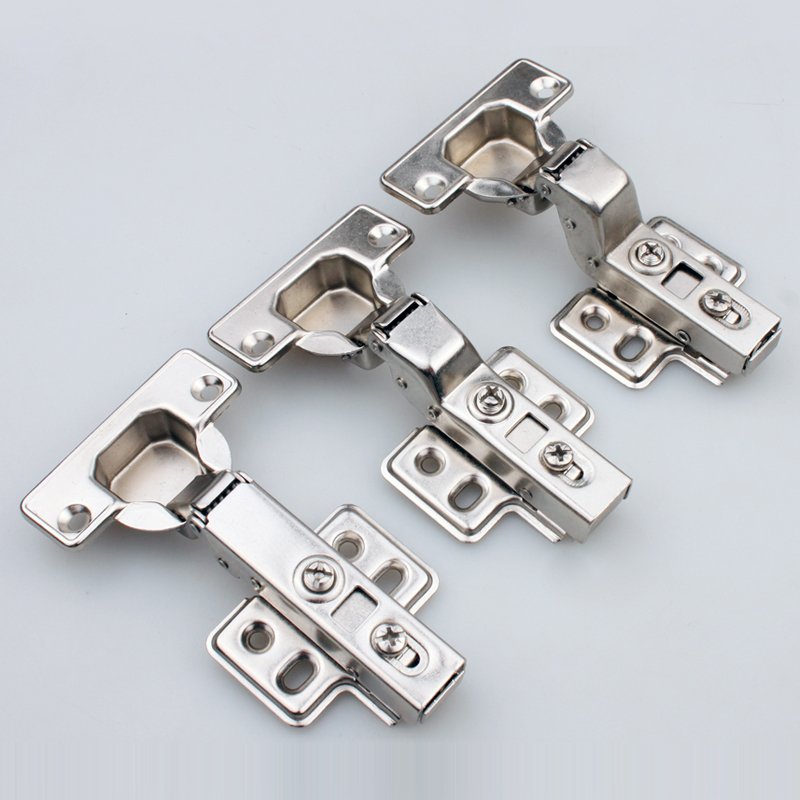

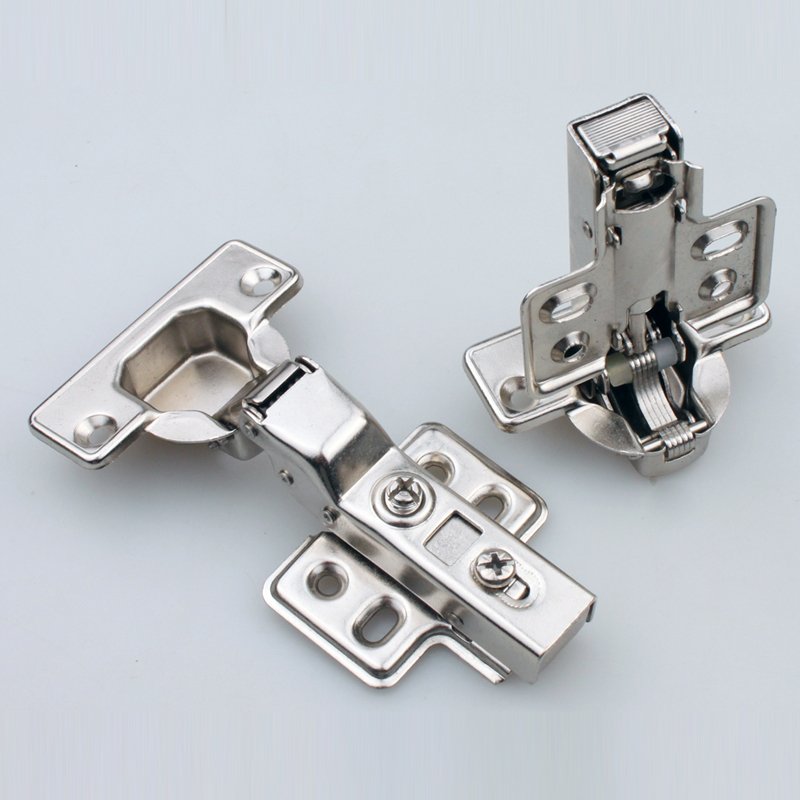

Wholesale 35mm Iron Hydraulic Soft-Close Hinge

Wholesale 35mm Iron Hydraulic Soft-Close Hinge

High-quality 35mm iron hydraulic hinge for bulk supply.

Features a clip-on mechanism and soft-close technology.

Ideal for cabinet factories and furniture hardware wholesalers.

Product Overview

The Model 6264 is a cornerstone of our professional furniture hardware lineup. This 35mm iron hydraulic hinge combines the convenience of a clip-on mounting system with an integrated hydraulic cylinder for a smooth, silent closing action. Designed for high-volume production lines, it offers a reliable solution for modern cabinetry where soft-close functionality is a non-negotiable standard. As a dedicated cabinet hinge supplier, we ensure that every unit provides the structural integrity required for heavy-use environments.

Key Features

• Integrated Hydraulic Damping
  The built-in iron button hydraulic system ensures a silent, controlled “soft-close” motion, preventing door slamming and extending the lifespan of the cabinet carcass.

• Efficient Clip-on Mechanism
  The tool-free clip-on design allows for rapid installation and removal of doors, significantly reducing labor time on the assembly line or during on-site installation.

• Universal 35mm Cup
  Standardized 35mm cup diameter with an 11.5mm depth, making it compatible with most automated boring machines and standard door profiles.

• Optimized Opening Angle
  A versatile 95° to 105° range provides wide access to cabinet interiors while maintaining a compact footprint.

Applications

• Residential Kitchen Cabinetry

• Wardrobes & Closets

• Custom furniture

• Projects requiring precise door gap and panel alignment

Customization Options

This product is manufactured based on standardized models.
Instead of fully custom structural designs, we offer clearly defined configuration options, including:

• Overlay Types: Full Overlay, Half Overlay, and Inset options available.

• Branding: Custom logo embossing on the hinge arm or cover caps for brand consistency.

• Packaging: Bulk industrial packing or individual retail-ready polybags.

• Material Upgrades: While the 6264 is high-grade iron, stainless steel alternatives are available for high-humidity environments.

This approach ensures stable quality, controlled cost, and reliable lead time, especially for bulk orders.

Quality & Testing

• Batch inspection during production

• Performance and durability testing available

Reference standards:

• Salt Spray testing: Passes rigorous 24 / 48 hours neutral salt spray tests, proving resistance to oxidation and finish degradation.

• Cycle Testing: Certified for over 30,000+ / 50,000+ open/close cycles, ensuring years of maintenance-free operation.

For detailed specifications, available configurations, or OEM project references, please contact us for more information or sample support.
