Bulk Iron 2D Hydraulic Soft Closing Concealed Furniture Cabinet Door Hinge

MINVEE 1.2mm Heavy-Duty Iron 2D Hydraulic Soft Close Concealed Cabinet Hinge (Clip-On)

Product Overview

The MINVEE Iron 2D Hydraulic Soft Close Hinge is engineered for high-volume cabinet production, balancing robust structural strength with smooth, precise installation alignment. Stamped from thick 1.2 mm cold-rolled steel, this hinge features a integrated 2D eccentric cam adjustment screw directly on the hinge arm, allowing fast, tool-assisted lateral door fine-tuning without loosening mounting screws. Combined with an integrated fluid damper cylinder and a tool-free clip-on detachable base plate, it provides long-lasting, silent closing performance across 50,000+ operational cycles.

Technical Specifications

Key Technical Features

• 1.2 mm Heavy-Duty Steel Core: Constructed with $1.2\text{ mm}$ thick high-tensile cold-rolled steel to prevent sagging and maintain long-term door stability under daily heavy usage.

• 2D Precision Cam Adjustment: Integrated eccentric cam screw enables instant, tool-assisted lateral fine-tuning for seamless door panel gaps without loosening fixing screws.

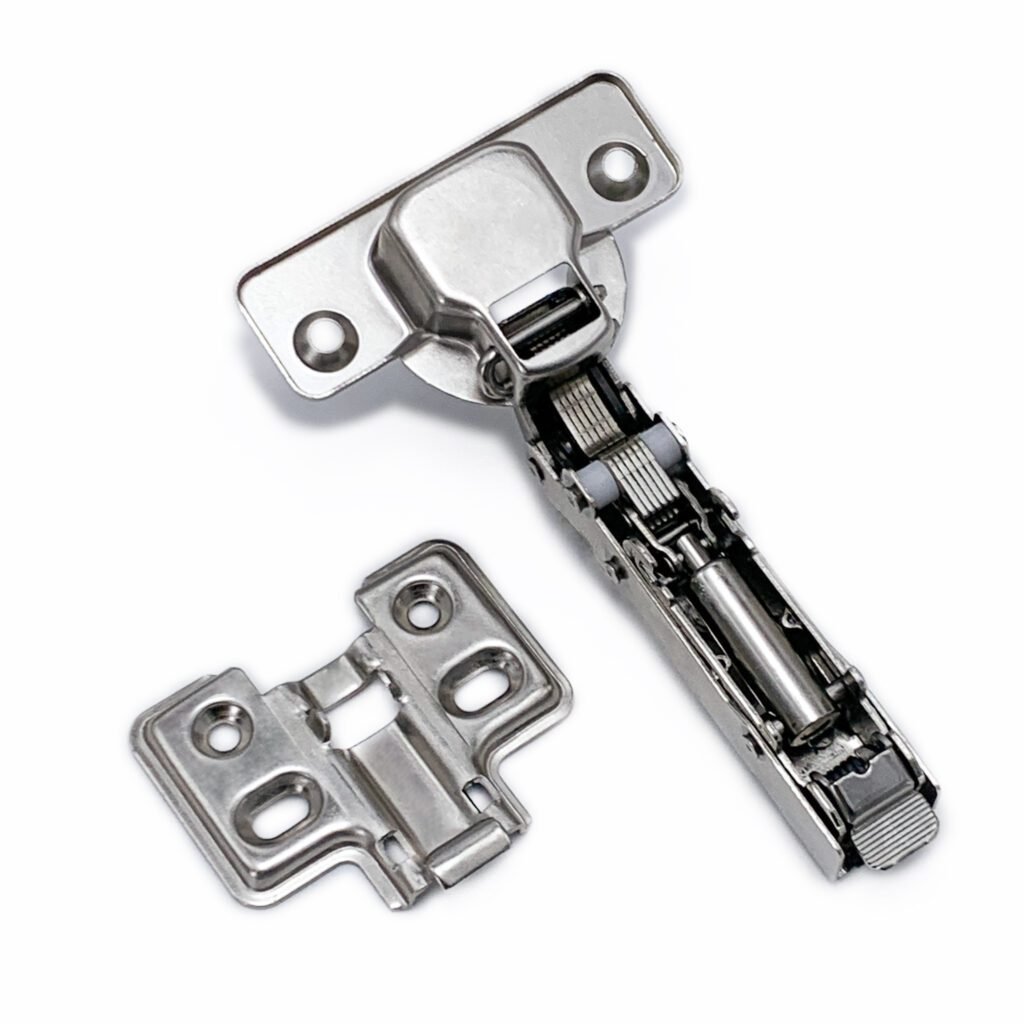

• Hydraulic Soft-Closing: Built-in fluid cylinder absorbs closing momentum, guaranteeing quiet, slam-free operation and extending cabinet frame lifespan.

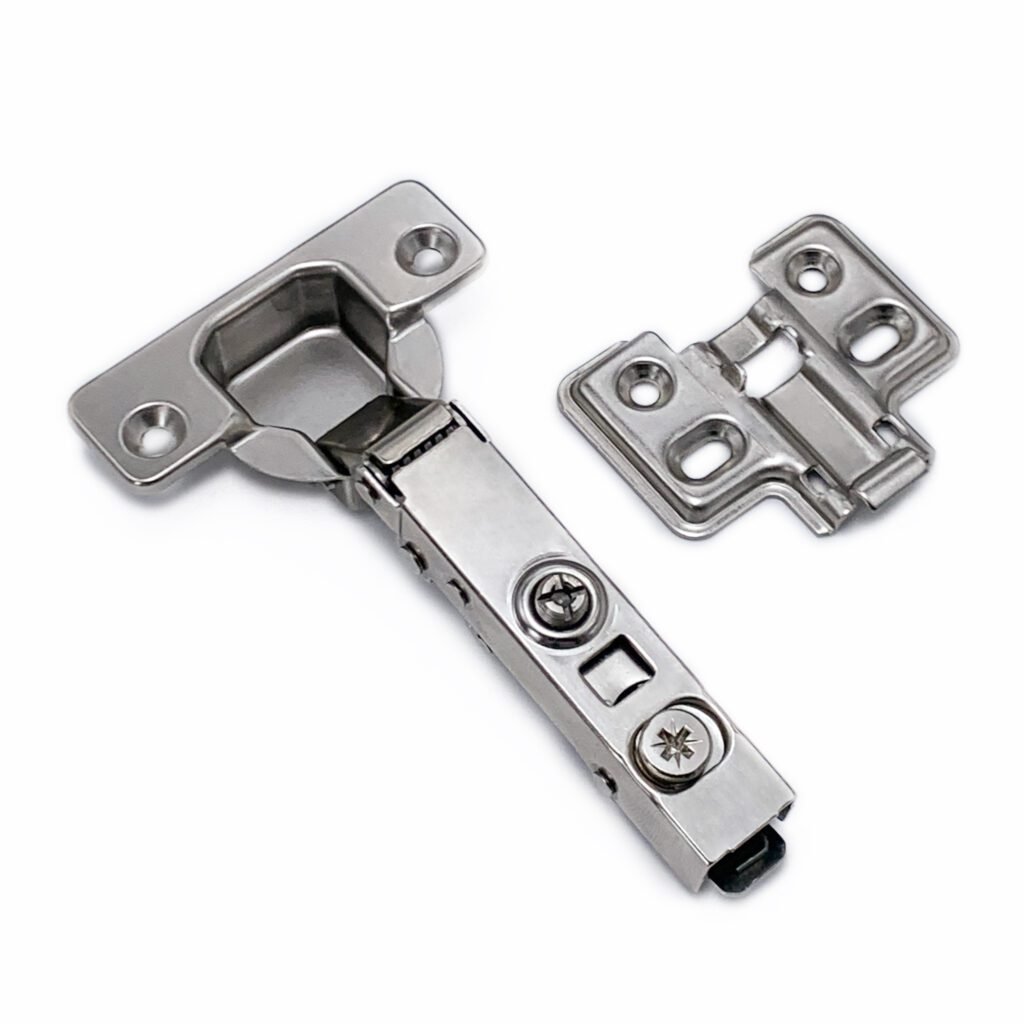

• Tool-Free Clip-On Base: Quick-release trigger allows rapid, tool-free door mounting and dismounting, boosting assembly efficiency on site and in factory lines.

• 50,000-Cycle Endurance: Tested to perform smoothly over 50,000 opening and closing cycles for reliable commercial and residential cabinet performance.

Frequently Asked Questions (FAQ)

Q1: What makes the 2D eccentric cam screw better than standard screw adjustments?

A: Standard non-cam screws require you to loosen the screw, manually shift the hinge arm, and re-tighten it—often losing exact alignment in the process. The built-in 2D eccentric cam screw allows installers to simply turn a screwdriver to slide the hinge smoothly side-to-side, providing millimeter-precise alignment without loosening hardware.

Q2: What is the significance of the 1.2 mm iron plate thickness?

A: A 1.2 mm steel thickness provides higher tensile strength and rigidity compared to lighter budget hinges (0.8 mm-1.0 mm). It resists deformation under door weight and ensures the clip-on joint remains firmly locked over years of frequent use.

Q3: Does this 2D hydraulic hinge support full overlay, half overlay, and inset applications?

A: Yes. The 1.2mm 2D clip-on series is supplied in Full Overlay (0 mm crank), Half Overlay (9 mm crank), and Inset (18 mm crank) arm profiles to accommodate various cabinet frame designs.

Q4: What packaging options are available for wholesale export orders?

A: Standard supply options include industrial bulk packing (200 pcs per carton) with screws packaged separately, or retail polybag sets (2 pcs with screws). Customized inner box branding and palletized shipments are available upon request.
