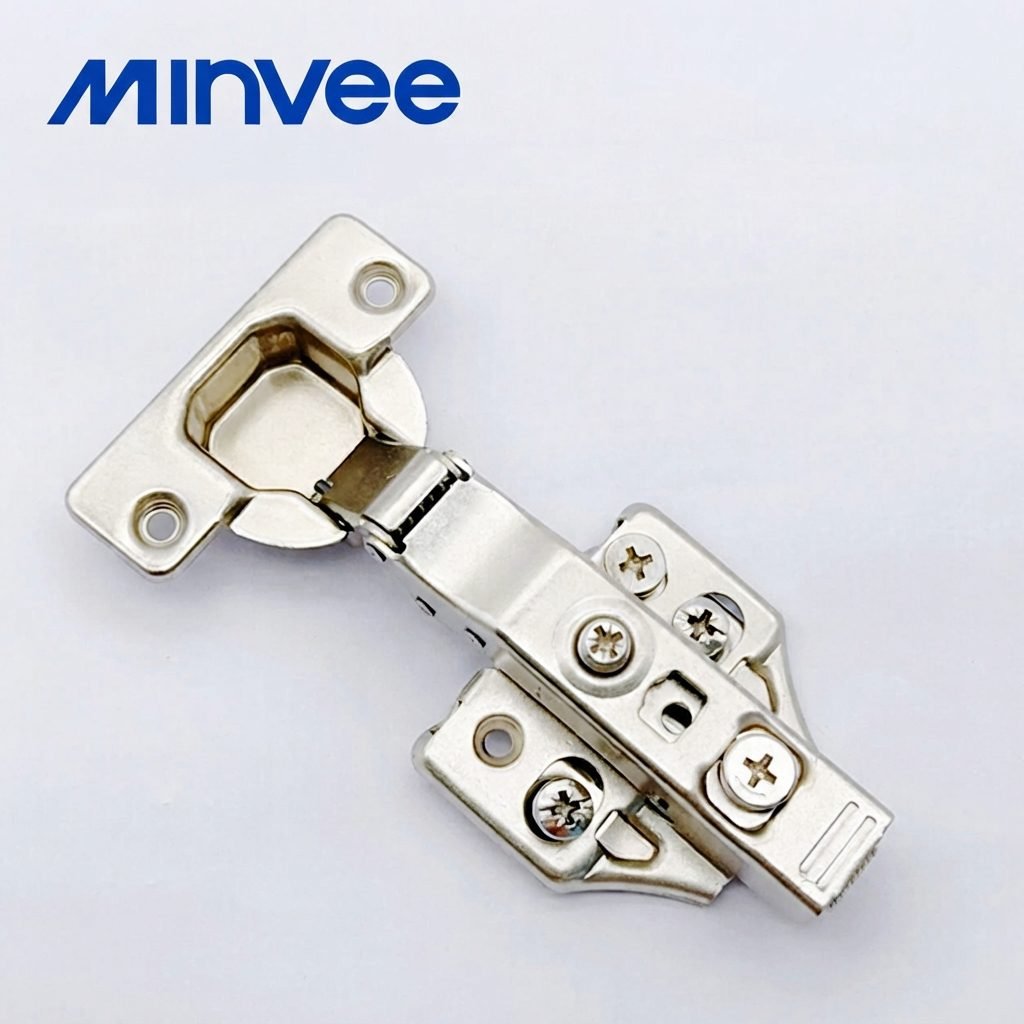

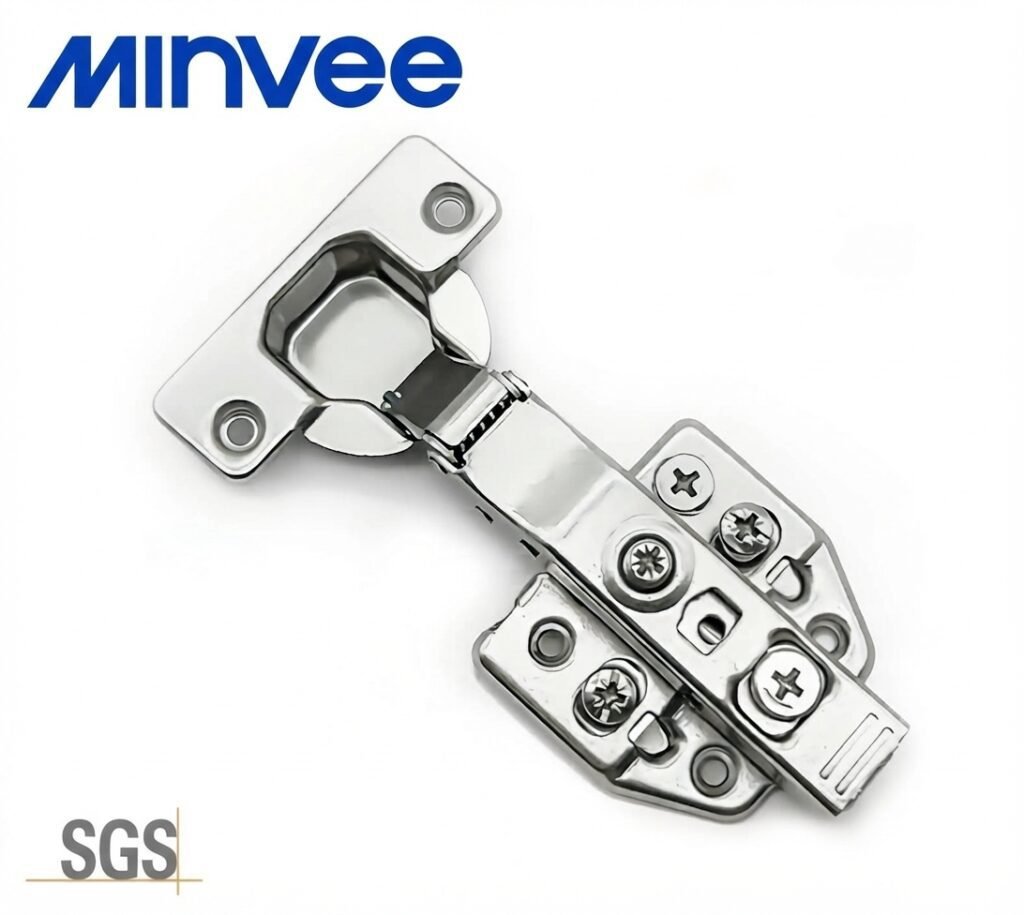

MINVEE Bulk 35mm Euro Screw 3D Soft Close Concealed Cabinet Hinge

MINVEE 35mm Euro Screw 3D Soft Close Concealed Cabinet Hinge, Hydraulic Full-Overlay Furniture Hardware

Product Overview

The MINVEE 35mm Euro Screw 3D Soft Close Concealed Cabinet Hinge is designed for modern kitchen, living room, bedroom, and commercial cabinetry where reliable soft closing and precise door alignment are required.

Featuring a full-overlay straight-arm profile, integrated hydraulic soft close, Euro screw mounting, and 3D adjustment, this concealed hinge provides manufacturers with a practical solution for high-volume cabinet production and furniture projects.

The standard 35 mm European hinge cup and Euro screw mounting make this model suitable for applications using pre-drilled cabinet door and mounting plate systems. For more information about 35 mm hinge dimensions, mounting requirements, overlay types, and installation, see our guide to 35mm cabinet hinges.

For OEM and bulk purchasing requirements, MINVEE can provide product specifications, samples, OEM packaging, and production support.

Technical Specifications

Key Technical Features

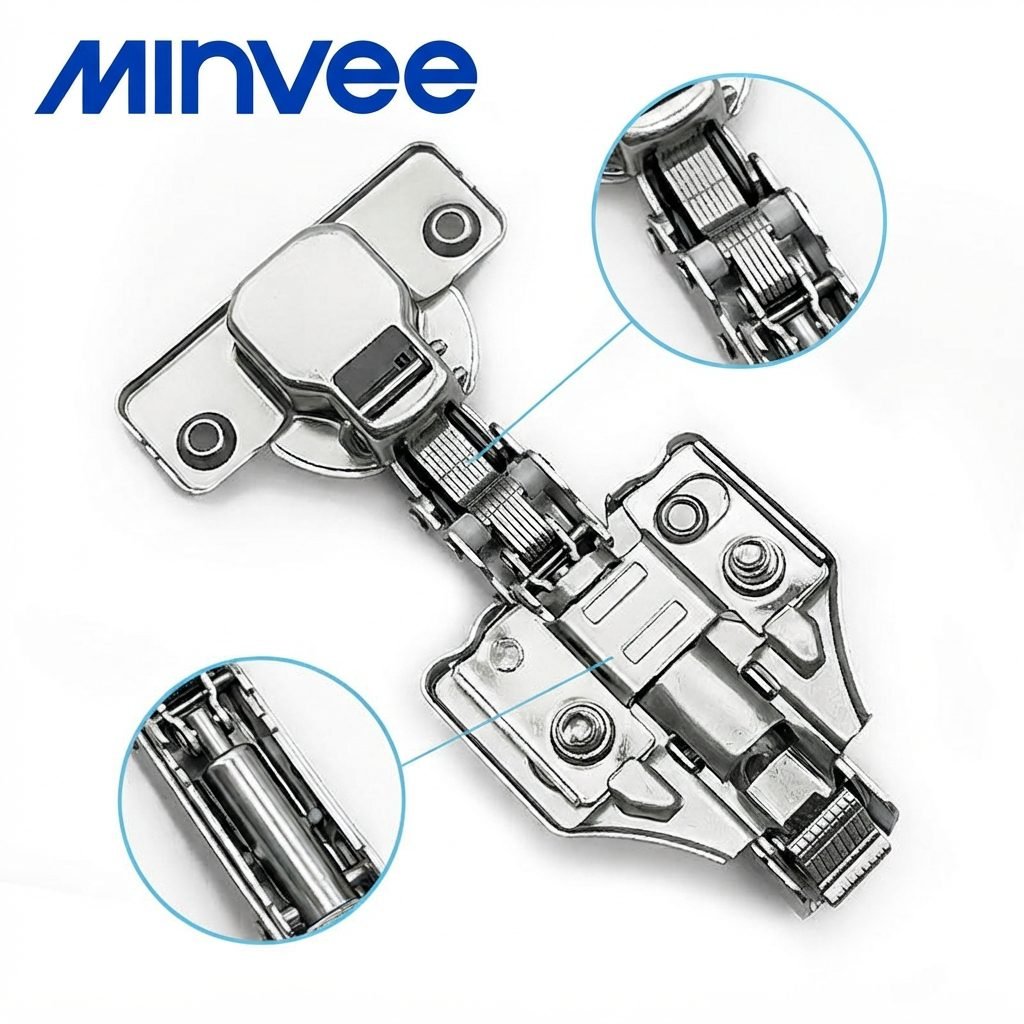

Integrated Hydraulic Soft Close

The integrated hydraulic damper controls the final closing movement of the cabinet door, helping reduce slamming and providing a quieter closing experience.

For manufacturers comparing different soft-close cabinet hinges, the damping mechanism, door size, installation conditions, and required closing performance should all be considered together.

3D Precision Adjustment

The hinge provides adjustment in three directions:

• Height
• Side-to-side
• Depth

This allows installers and cabinet manufacturers to fine-tune door alignment after installation and compensate for normal production or installation tolerances.

Euro Screw Mounting

The Euro screw mounting configuration is designed for applications using compatible pre-drilled cabinet door and mounting plate systems.

Compared with conventional wood-screw mounting, Euro screw installation can provide a more repeatable fixing method when the required hole pattern and drilling tolerances are correctly controlled.

For automated or CNC-based cabinet production, the exact drilling dimensions should always be confirmed against the technical drawing of the selected hinge model.

Tool-Free Clip-On Base

The detachable clip-on mounting base allows the cabinet door to be installed and removed efficiently during assembly, adjustment, and maintenance.

This can be useful for production lines and installation teams handling repeated cabinet assembly.

Corrosion-Resistant Nickel Finish

The bright nickel-plated surface provides protection for the steel components against normal humidity and everyday wear.

The hinge has been tested for corrosion resistance as part of the product quality evaluation. Actual corrosion performance depends on the test method, environment, and application conditions.

Full Overlay Cabinet Door Design

This model uses a full-overlay straight-arm configuration.

It is designed for cabinet doors that substantially cover the cabinet side panel when closed.

The final door gap and overlay depend on the cabinet construction, mounting plate, drilling position, and adjustment. Manufacturers should therefore confirm the actual door and cabinet dimensions before mass production.

3D Adjustment for Cabinet Production

Three-dimensional adjustment is particularly useful when multiple cabinet doors need to maintain consistent gaps and alignment.

After installation, the door position can be adjusted in:

Height → Side-to-Side → Depth

This makes the hinge suitable for cabinet manufacturers and installers who need to fine-tune door alignment during assembly.

For production projects, adjustment capability should be evaluated together with the cabinet construction, drilling accuracy, mounting plate, and required door gap.

Frequently Asked Questions

Q1: What is a Euro screw cabinet hinge?

A Euro screw hinge uses a compatible pre-drilled fixing system rather than relying only on conventional wood screws. The mounting method can provide consistent positioning when the cabinet drilling pattern and hinge dimensions are correctly matched.

For CNC or automated production, the required drilling pattern should be confirmed from the specific technical drawing before production.

Q2: What cabinet door overlay does this hinge support?

This model is a Full Overlay / Straight Arm concealed hinge.

It is intended for applications where the cabinet door substantially covers the cabinet side panel.

The actual overlay depends on the mounting plate, drilling position, door construction, and cabinet design.

Q3: Does this hinge have soft close?

Yes. The hinge has an integrated hydraulic soft-close mechanism that controls the final closing movement of the cabinet door.

For larger or heavier doors, the number of hinges and installation configuration should be determined according to the actual door dimensions and weight.

Q4: Can the hinge be adjusted in three directions?

Yes. The hinge provides 3D adjustment for height, side-to-side position, and depth.

This allows installers to fine-tune the door after installation.

Q5: How many hinges are required for one cabinet door?

The required number depends on the door height, width, material, weight, and cabinet construction.

For heavier or larger doors, additional hinges may be required. We recommend confirming the actual application before finalizing the hinge quantity.

Q6: What packaging options are available for bulk OEM orders?

Standard packaging can include bulk master cartons or individual polybag sets with mounting screws and arm cover caps.

Custom branded cartons and OEM packaging are available upon request.

For bulk projects, packaging specifications should be confirmed together with the order quantity and product configuration.

Why Use a 35mm 3D Soft Close Hinge?

For furniture manufacturers, a hinge should be evaluated not only by its basic dimensions, but also by how well it fits the production and installation process.

Key factors include:

• 35 mm hinge cup compatibility
• Correct mounting and drilling dimensions
• Full-overlay door configuration
• 3D adjustment requirements
• Soft-close performance
• Door size and weight
• Required durability
• Production volume
• Packaging and OEM requirements

The MINVEE 35mm Euro Screw 3D Soft Close Hinge combines these features into one concealed cabinet hinge solution for furniture production and commercial cabinetry.

Bulk OEM & Furniture Hardware Supply

For cabinet manufacturers, distributors, importers, and project buyers, MINVEE supports bulk sourcing of furniture hardware with product specifications, samples, OEM packaging, and production coordination.

If you are sourcing several types of cabinet hardware, you can also explore our cabinet hinge manufacturer and furniture hardware supply solutions.

Before placing a large order, we recommend confirming:

1. Product model
2. Cup and mounting dimensions
3. Overlay requirements
4. Door thickness and weight
5. Required opening angle
6. Adjustment requirements
7. Packaging specifications
8. Sample approval and production requirements

For OEM projects, the approved sample and technical specification can be used as the reference for subsequent production.

Quality & Durability

This hinge has been tested for 50,000+ opening and closing cycles and corrosion resistance.

For production buyers, test results should be considered together with material specifications, dimensional consistency, production controls, and the actual application environment.

If your project has specific durability, corrosion, or installation requirements, contact us with your target specifications so we can confirm the suitable configuration.
