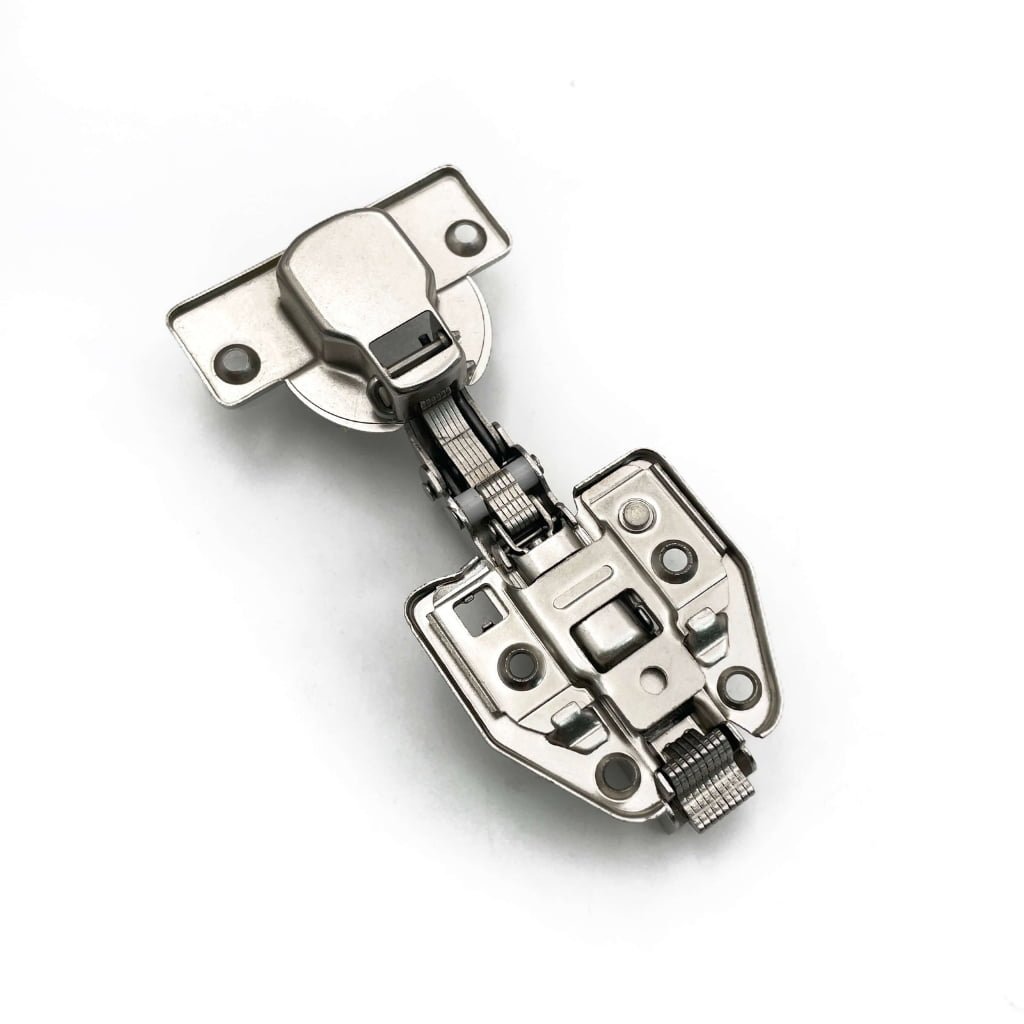

Wholesale 40mm 3D Adjustable Iron Hydraulic Hinges

Product Overview

Our 40mm heavy-duty iron hydraulic hinge combines maximum weight-bearing capacity with 3-dimensional (3D) micro-alignment control. Engineered specifically for thick-panel modular furniture, solid wood doors, and oversized cabinet panels (25mm to 30mm thickness), this heavy-gauge cold-rolled steel hinge solves the dual challenges of door sagging and field-alignment friction. The integrated clip-on mechanism and eccentric 3D screws allow installation crews to perfect door gaps instantly without removing the hardware.

Key Features

3-Dimensional (3D) Precision Alignment

Features built-in eccentric adjusting screws on the hinge arm and base plate. Installation teams can adjust the door panel Up/Down, Left/Right, and Depth (In/Out) independently. This eliminates traditional trial-and-error manual screw loosening and accelerates large-scale project handovers.

Heavy-Duty 40mm Oversized Cup

The structural 40mm cup diameter and deep seat profile distribute structural leverage across a larger wood surface area. It prevents the mounting screws from stripping or tearing out when anchoring heavy, oversized solid wood or high-density fiberboard door panels.

Anti-Sagging Thick Door Trajectory (25mm – 30mm)

Engineered with a specialized wide-clearance mechanical pivot linkage. This allows extra-thick door profiles to open up to 105° smoothly without binding against the cabinet side panel or causing front-face rubbing.

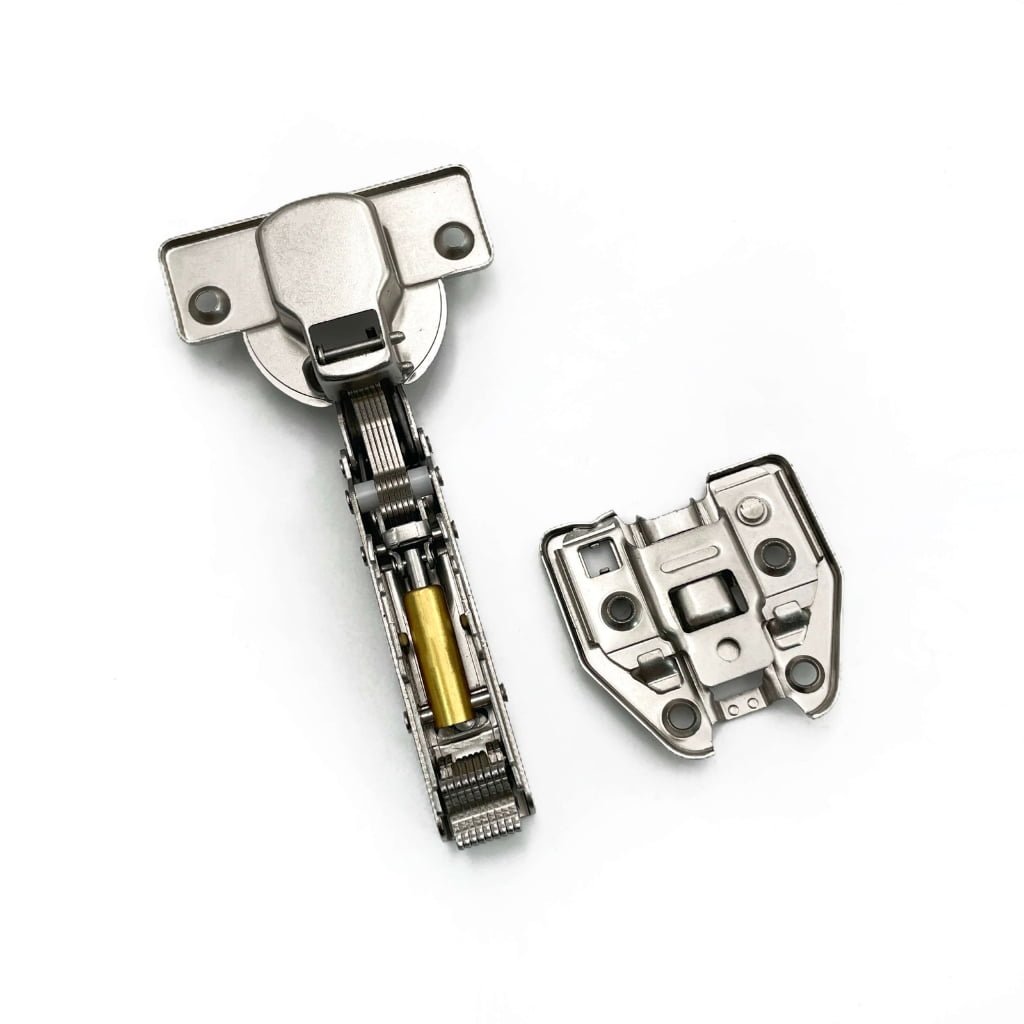

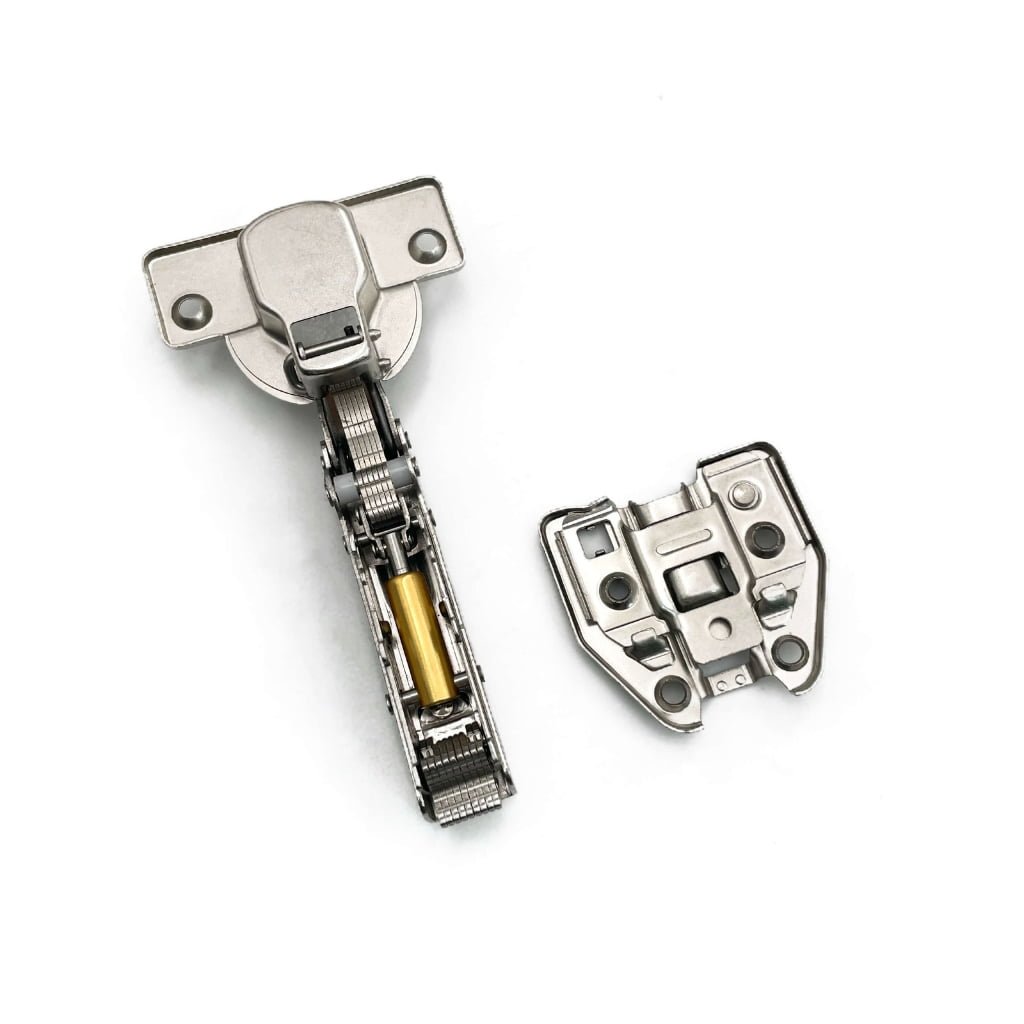

High-Output Automated Hydraulic Buffer

Equipped with a commercial-grade, sealed hydraulic cylinder. It catches heavy, high-inertia door panels smoothly, converting rapid force into a silent, slow soft-close motion, protecting the cabinet frame from repetitive high-impact damage.

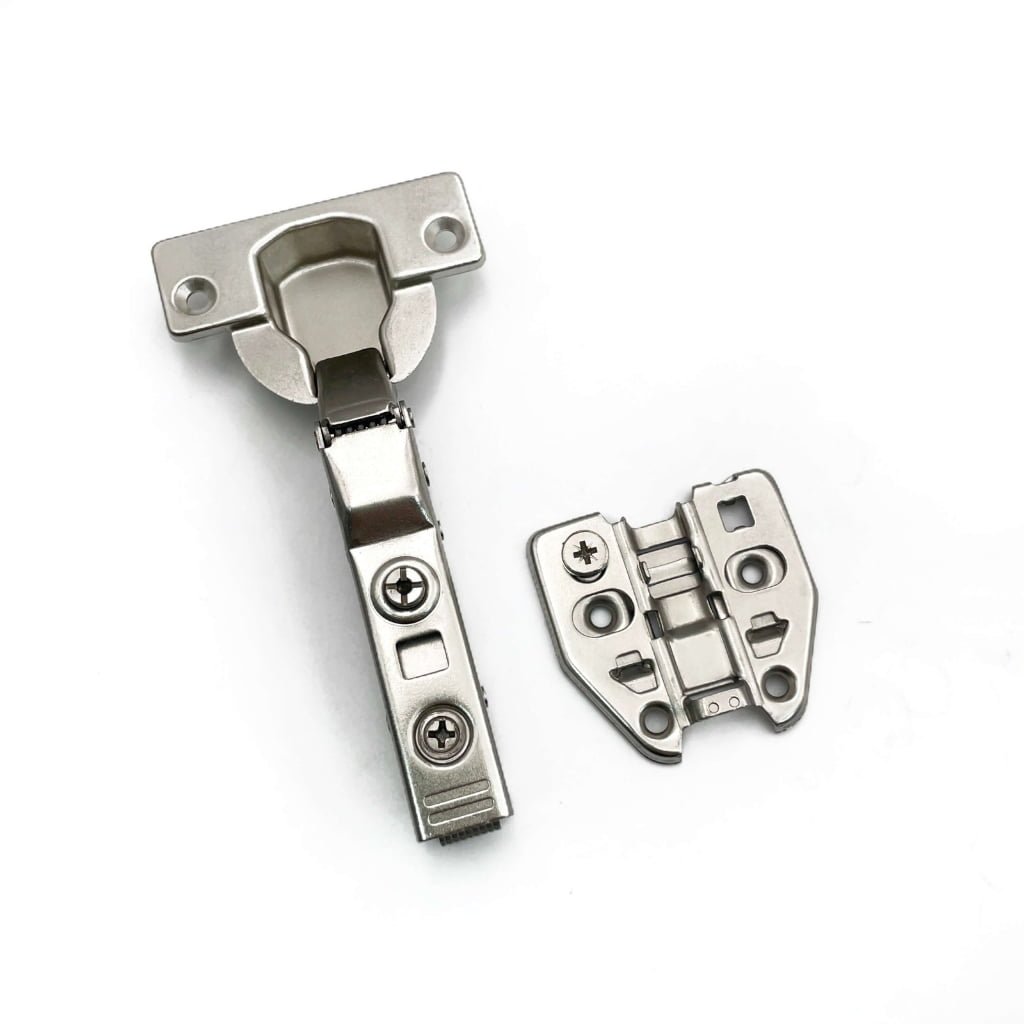

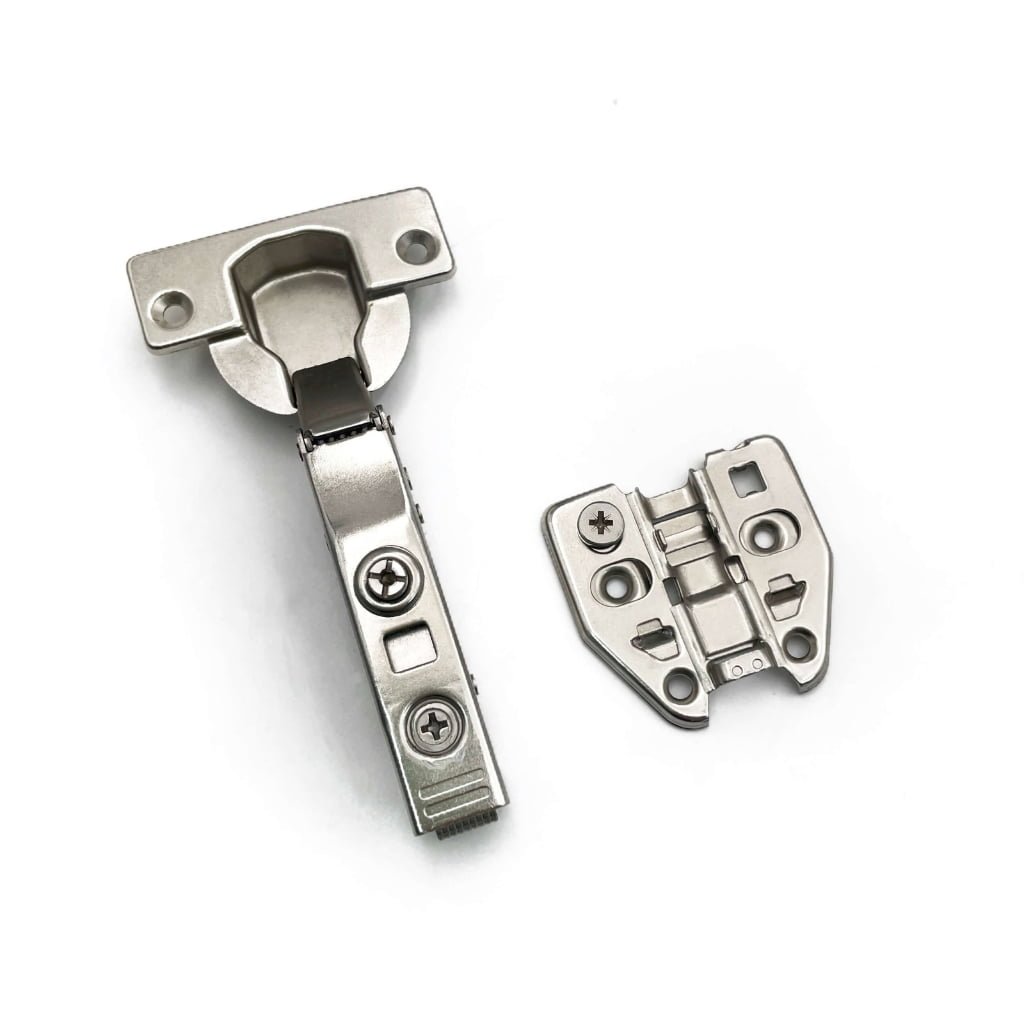

One-Touch Clip-On Base Plate

The quick-release mechanism separates the hinge body from the mounting plate via a secure rear button. Heavy doors can be pre-fabricated, shipped flat-packed, and snapped onto the cabinet carcass on-site in seconds to minimize labor hours.

Technical Specifications

(Note: While this page details our heavy-duty 40mm specialty series, our high-speed production line shown in image_b11f25.png specializes in high-volume, budget-friendly 35mm iron cup models. We support mixed container loading across all specifications.)

Application Suitability & Sourcing Logic

Why Sourcing From MINVEE

• Direct Stamping Manufacturing: Shipped straight from our automated facility in Jieyang, bypassing trading company markups to protect your local distribution margins.

• Mass Container Consolidation: We understand that 40mm 3D specialty hinges are low-ratio inventory items compared to standard 35mm lines. We support mixed-SKU container loading, allowing you to bundle 40mm, 35mm, and drawer runners under one shipping contract.

• Stable Plating Quality: Coated with a uniform, multi-layer industrial nickel plating to ensure stable shelf life and protect raw steel from flash rust during maritime transit.

• Verified Mechanical Consistency: Precision computer-controlled tooling ensures every batch matches the exact technical blueprint, eliminating structural misalignments for your furniture clients.

FAQ

Why is 3D adjustment critical for a 40mm heavy-duty hinge?

Heavy doors (25-30mm thickness) exert enormous leverage on a cabinet frame. Even a 1mm misalignment at the hinge translates to a visible, crooked gap at the edge of a large door. Standard hinges require installers to loosen screws and physically hold the heavy door to adjust it. A 3D hinge allows the installer to turn small cam screws with a screwdriver to micro-adjust the door up, down, left, right, or deep in seconds while the door remains mounted.

Can this 40mm hinge replace standard 35mm hinges on my current production line?

The side plate drilling utilizes the standard 37mm distance, which fits standard cabinetry grids. However, because the door cup is 40mm in diameter, your factory’s CNC or automatic boring machine must be equipped with a 40mm boring bit instead of the standard 35mm size.

What is the advantage of choosing iron (cold-rolled steel) over stainless steel for this 40mm model?

Iron (cold-rolled steel) provides exceptional physical hardness, tensile strength, and structural rigidity at a highly aggressive wholesale price point. For interior applications like premium bedroom wardrobes, executive office furniture, and living room wall units where direct water exposure is non-existent, iron delivers the necessary heavy-duty performance at a much lower cost than stainless steel.

Does the clip-on plate stay secure under the weight of a heavy solid wood door?

Yes. The clip-on locking spring mechanism is stamped from reinforced steel designed to snap tightly and lock the hinge arm into place. It resists high pulling forces and will not detach unless the rear release button is intentionally pressed.

Are installation screws included in your bulk industrial packing?

To maintain the most competitive factory-direct pricing for volume buyers, mounting screws are excluded from standard industrial master cartons. However, we can supply matching wood screws or specialized Euro screws upon contract request.
