MINVEE Lightweight 3D Iron Hydraulic Soft Closing Furniture Cabinet Door Hinges (6-Hole Base)

MINVEE Lightweight 3D Adjustment Iron Hydraulic Cabinet Hinges (6-Hole)

Product Overview

The MINVEE Lightweight 3D Iron Hydraulic Soft Close Hinge offers an optimal balance of structural strength, 3D alignment flexibility, and cost-efficiency for mass-market cabinetry production. Weighing approximately $114\text{ g}$ per piece, this hinge is constructed from cold-rolled steel with a nickel-plated finish and features a specialized 6-hole butterfly mounting plate for superior anchor stability on particleboard and MDF. Equipped with integrated 3D eccentric adjustment screws, it allows quick, precise fine-tuning of door position (up/down, left/right, in/out) without loosening mounting screws, significantly boosting jobsite installation efficiency.

Technical Specifications

Key Technical Features

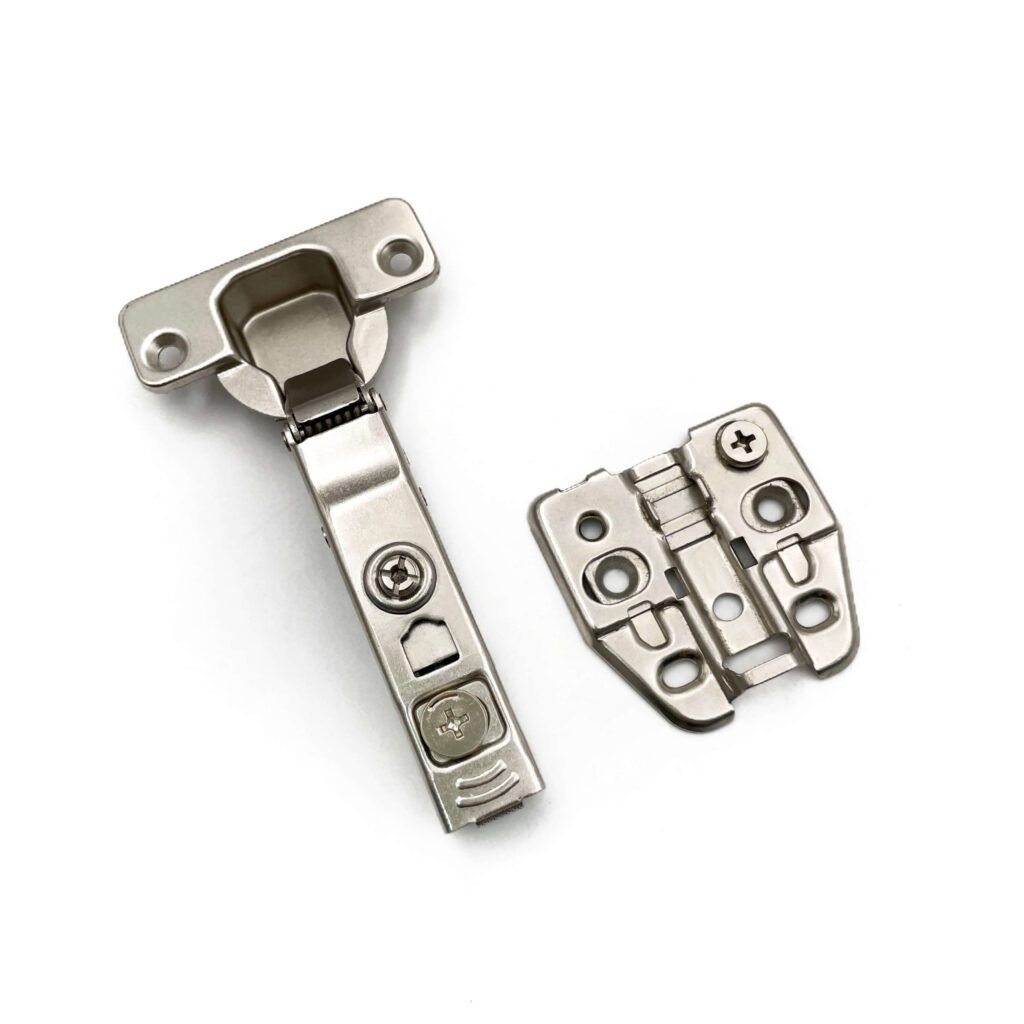

• 3D Eccentric Screw Adjustment: Features built-in cam adjustment screws on the hinge body and plate, enabling quick micro-adjustments in three dimensions (up/down, left/right, depth) for perfect door gap alignment.

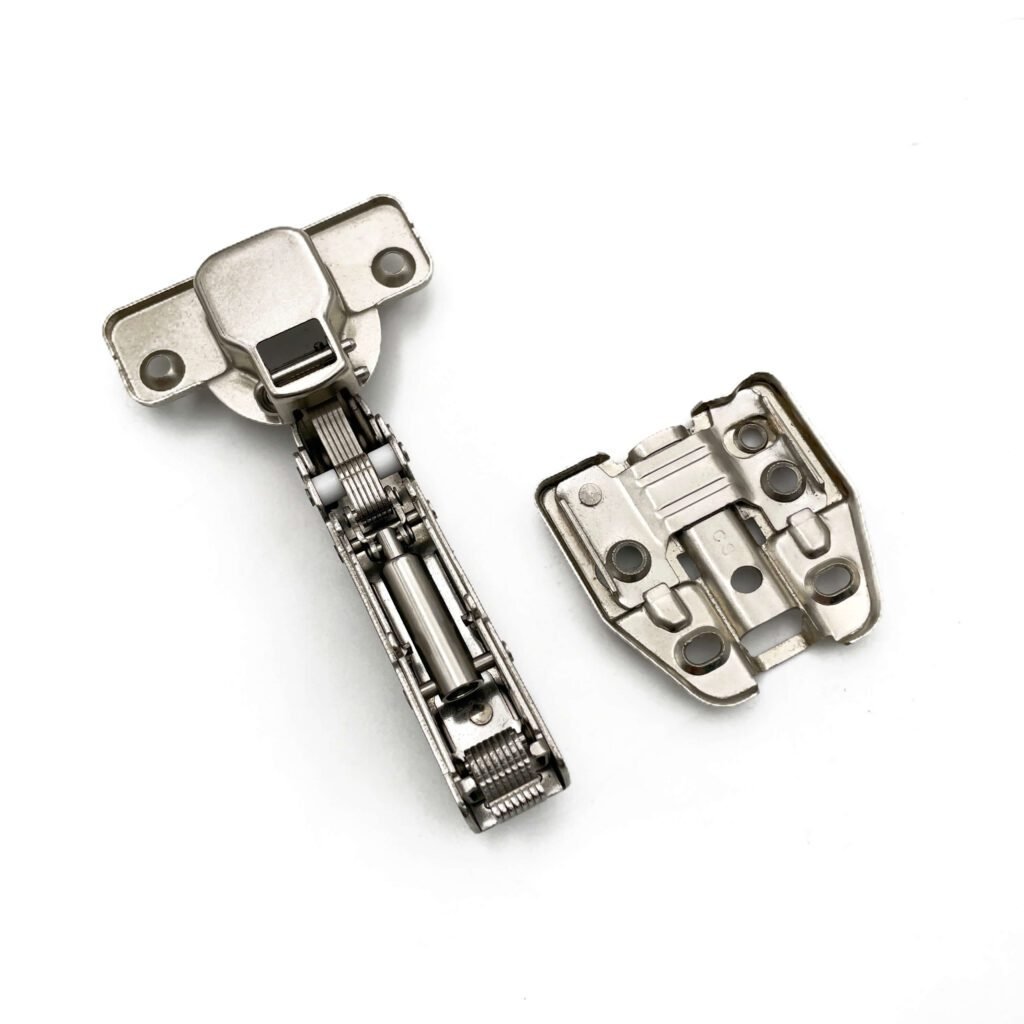

• 6-Hole Base Plate Stability: Designed with a 6-hole mounting footprint that distributes load weight across a larger area, preventing screw tear-out on lower-density engineered wood panels (MDF, chipboard).

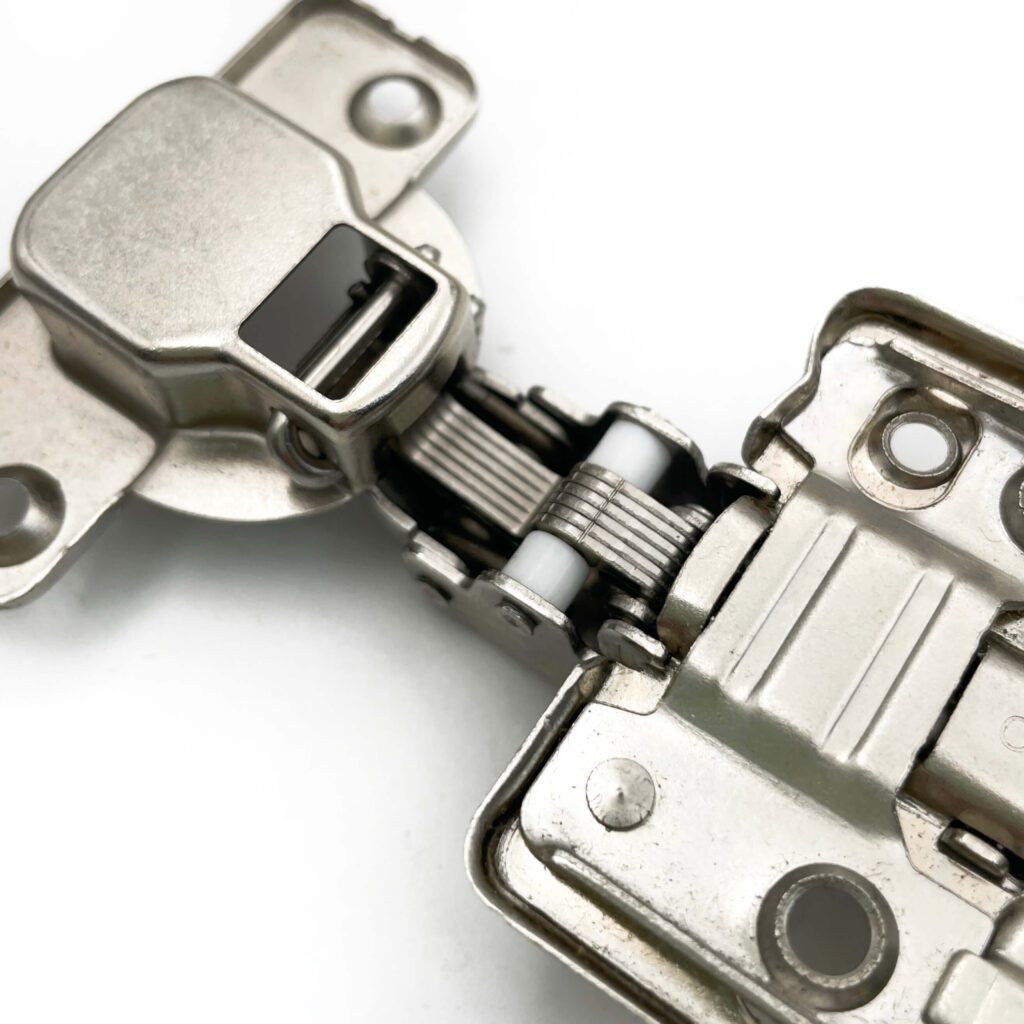

• Smooth Hydraulic Soft-Closing: Integrated hydraulic cylinder absorbs closing force, ensuring quiet, gentle door shutdown and preventing slam damage to cabinet frames.

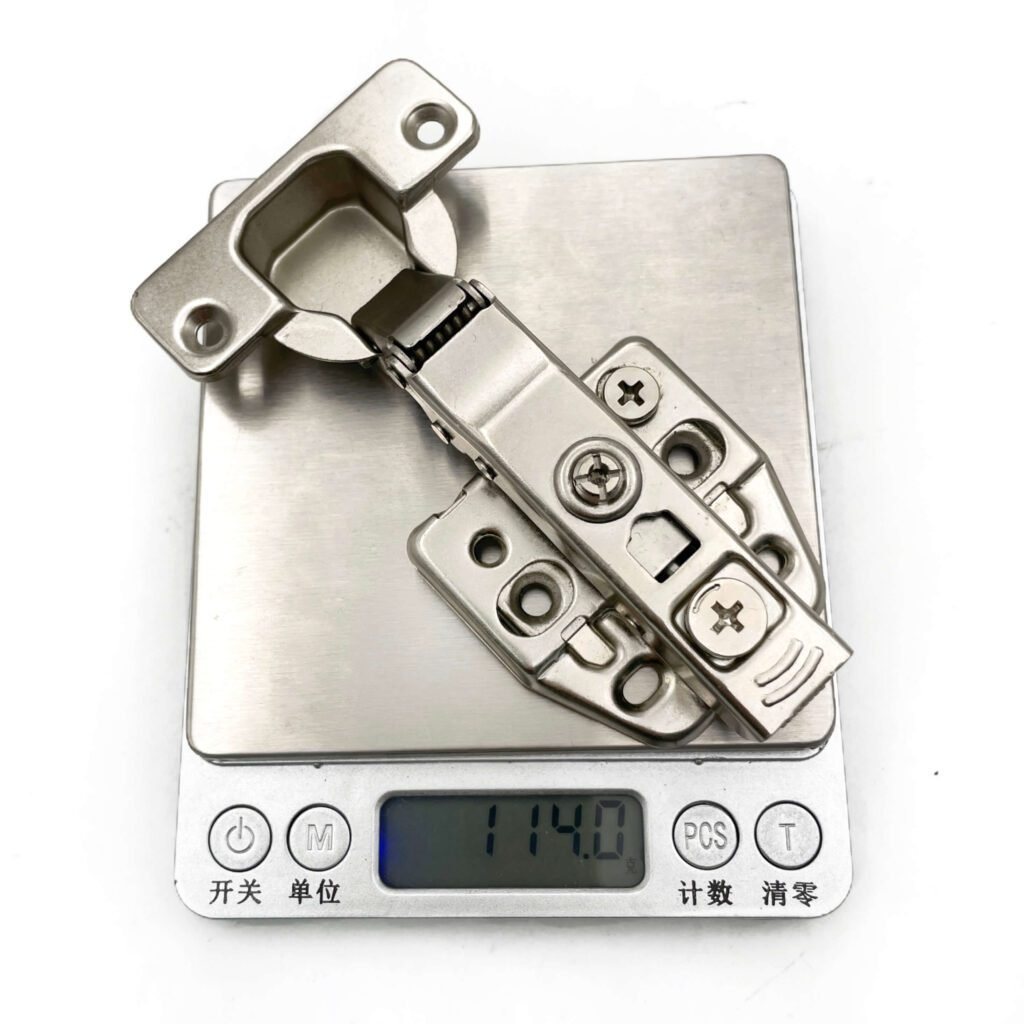

• Optimized Weight & Structural Design: At 114 g per piece, the lightweight iron structure provides high rigidity and durability while offering an exceptional price-to-performance ratio for large-scale production.

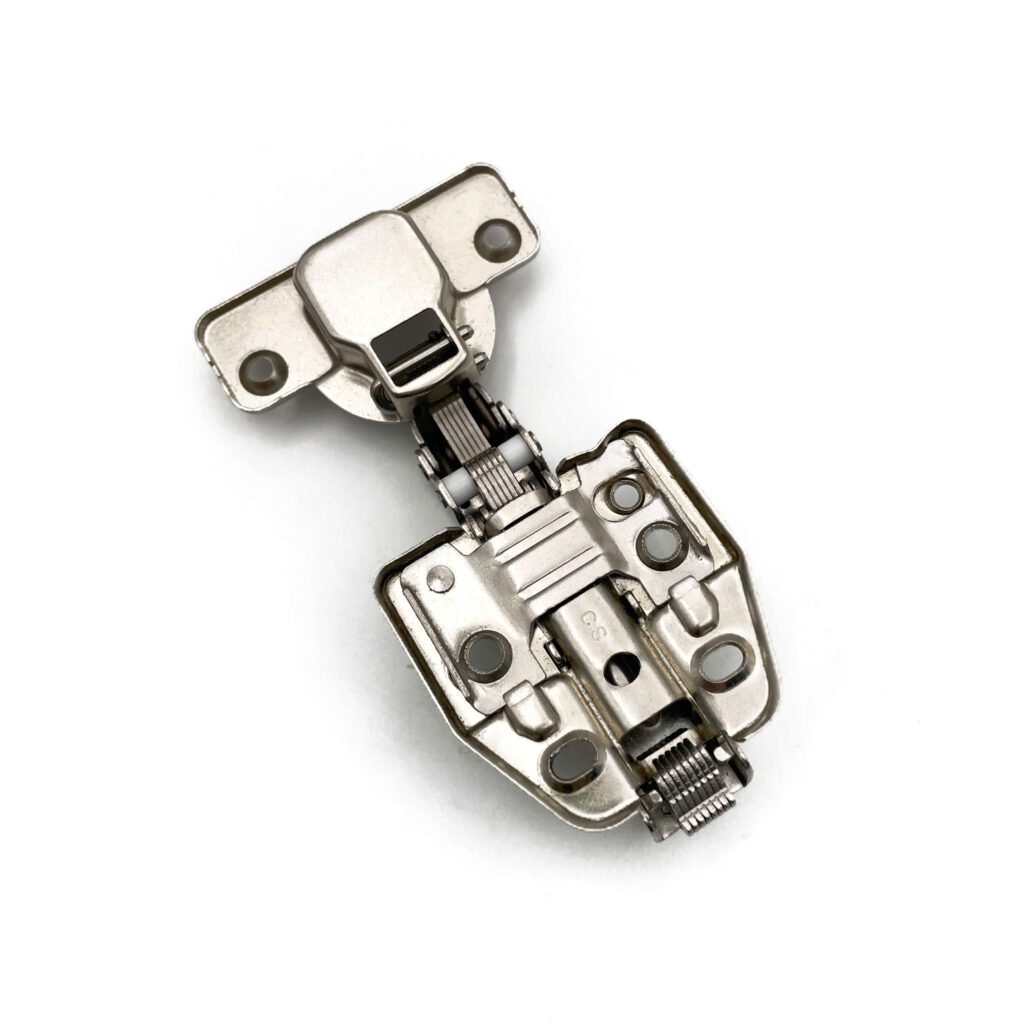

• Quick-Release Clip-On Mechanism: Clip-on base allows tool-free mounting and unmounting of cabinet doors, speeding up factory pre-assembly and final site installation.

Frequently Asked Questions (FAQ)

Q1: What are the main benefits of the 3D adjustment feature on this hinge?

A: The 3D adjustment mechanism utilizes eccentric cam screws directly on the hinge arm and plate. Installers can easily fine-tune door panel height, depth, and side coverage using a screwdriver, ensuring precise, uniform door reveal gaps across long cabinet runs without removing screws or reinstalling the plate.

Q2: Why choose a 6-hole mounting plate instead of a standard 2-hole or 4-hole plate?

A: A 6-hole base plate offers additional screw fixing points, distributing pull force across a wider surface area. This significantly increases screw holding strength, making it ideal for engineered wood materials (such as particleboard or lightweight core panels) where standard screw holes might strip under frequent door opening.

Q3: How does the lightweight 114g iron design benefit furniture manufacturers?

A: The 114g weight profile optimizes material usage without compromising structural integrity or hydraulic function. It reduces overall hardware weight and shipping costs while offering a highly competitive price point for high-volume furniture production and budget-conscious export projects.

Q4: Is this hinge available in full overlay, half overlay, and inset options?

A: Yes. The 3D 6-hole hydraulic hinge series is available in standard Full Overlay (0 mm crank), Half Overlay (9 mm crank), and Inset (18 mm crank) configurations to suit various cabinet frame requirements.

Q5: What standard packaging options are provided for export orders?

A: Standard supply options include industrial bulk packaging (200 pcs per carton) with screws packed separately, or retail polybag sets (2 pcs with mounting screws). Custom inner box branding and palletized shipping arrangements are available upon request.
